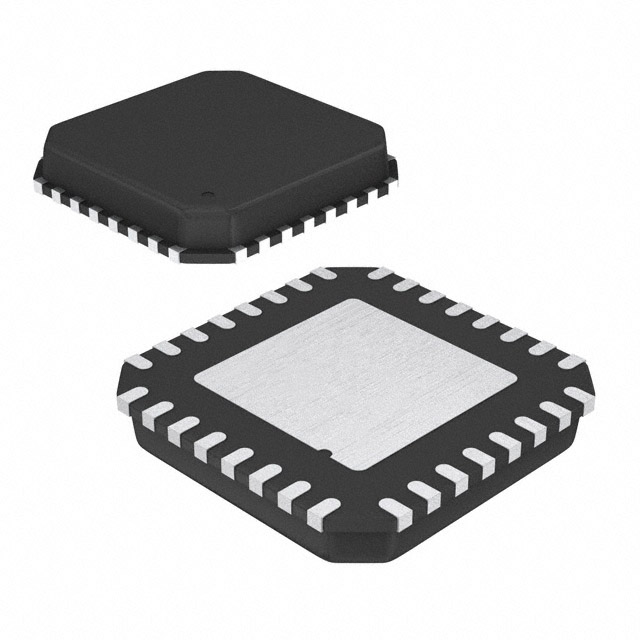

ADCMP566BCPZ
IC COMPARATOR 2 W/LATCH 32LFCSPManufacturer: Analog Devices Inc.
Categories: Comparators
Quality Control: Learn More
Analog Devices Inc. ADCMP566BCPZ is a high-speed dual comparator featuring differential inputs and ECL outputs. This component offers complementary, differential, and open-emitter output configurations, suitable for demanding applications. With a maximum propagation delay of 0.29ns, it excels in high-frequency signal processing. The device includes a latch function for capturing comparator states. Key specifications include a typical CMRR of 69dB and a quiescent current range of 18mA to 85mA. Input bias current is a maximum of 42µA at ±5.2V, and output current is typically 30mA. The ADCMP566BCPZ operates over a temperature range of -40°C to 85°C and is housed in a 32-LFCSP (5x5) package. Its performance characteristics make it valuable in telecommunications, test and measurement equipment, and high-speed data acquisition systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 32-VFQFN Exposed Pad, CSP |
| Output Type | Complementary, Differential, ECL, Open-Emitter |
| Mounting Type | Surface Mount |
| Number of Elements | 2 |
| Type | with Latch |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Single/Dual (±) | ±4.75V ~ 5.25V |
| Supplier Device Package | 32-LFCSP (5x5) |
| Propagation Delay (Max) | 0.29ns |
| Current - Quiescent (Max) | 18mA, 85mA |
| Voltage - Input Offset (Max) | 5mV @ -5.2V, 5V |
| Current - Input Bias (Max) | 42µA @ -5.2V,5V |
| Current - Output (Typ) | 30mA |
| CMRR, PSRR (Typ) | 69dB CMRR |
| Hysteresis | ±1mV |
