ADCMP563BCP-RL7
IC COMPARATOR 2 W/LATCH 16LFCSPManufacturer: Analog Devices Inc.
Categories: Comparators
Quality Control: Learn More

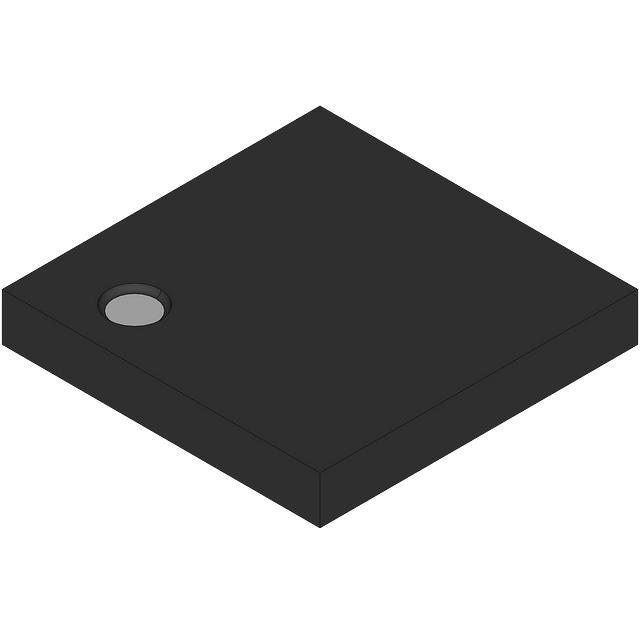

Comparator with Latch Complementary 16-LFCSP-WQ (3x3)
Additional Information
Series: -RoHS Status: RoHS Compliant By ExemptionManufacturer Lead Time: No lead time information availableProduct Status: ActivePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 16-WFQFN Exposed Pad, CSP |
| Output Type | Complementary |
| Mounting Type | Surface Mount |
| Number of Elements | 2 |
| Type | with Latch |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Single/Dual (±) | 4.75V ~ 5.25V, ±2.375V ~ 2.625V |
| Supplier Device Package | 16-LFCSP-WQ (3x3) |
| Propagation Delay (Max) | 0.83ns |
| Current - Quiescent (Max) | 5mA, 25mA |
| Voltage - Input Offset (Max) | 10mV @ 5V |
| Current - Input Bias (Max) | 10µA @ 5V |
| Current - Output (Typ) | 30mA |
| CMRR, PSRR (Typ) | 80dB CMRR, 85dB PSRR |
| Hysteresis | ±1mV |
