ADV7280ABCPZ-M-RL
10-BIT SD VIDEO DECODERManufacturer: Analog Devices Inc.
Categories: CODECS
Quality Control: Learn More
Analog Devices Inc. ADV7280ABCPZ-M-RL is a 10-bit analog-to-digital video decoder. This component features an I2C and serial interface for data transfer. Supplied in a 32-LFCSP (5x5) package, it is designed for surface mounting. The operating temperature range is -40°C to 85°C, with analog and digital supply voltages between 1.71V and 1.89V. This video decoder is utilized in applications such as automotive infotainment systems and digital television. The component is provided on a tape and reel for high-volume manufacturing.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 20 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

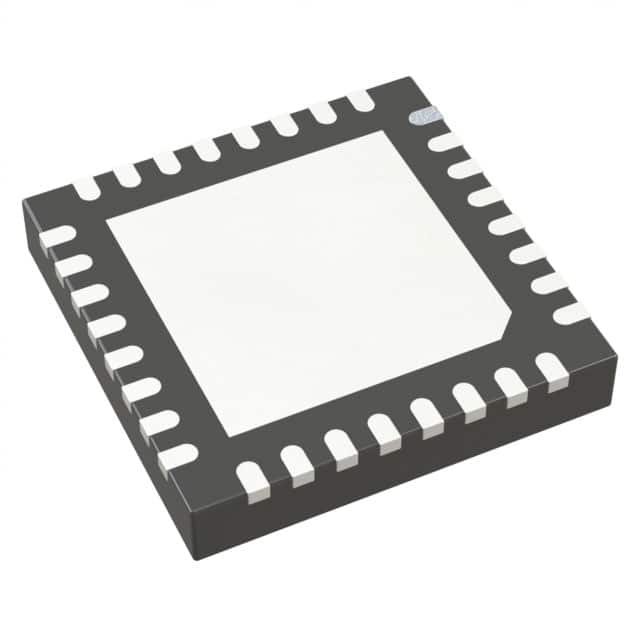

| Package / Case | 32-WFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Type | Video |
| Data Interface | I2C, Serial |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 1.71V ~ 1.89V |
| Voltage - Supply, Digital | 1.71V ~ 1.89V |
| Resolution (Bits) | 10 b |
| Dynamic Range, ADCs / DACs (db) Typ | - |
| Number of ADCs / DACs | 1 / 0 |
| S/N Ratio, ADCs / DACs (db) Typ | - |
| Sigma Delta | No |
| Supplier Device Package | 32-LFCSP (5x5) |
Request a Quote
