ADV7202KST
IC CODEC VIDEO 10BIT 64LQFPManufacturer: Analog Devices Inc.
Categories: CODECS
Quality Control: Learn More

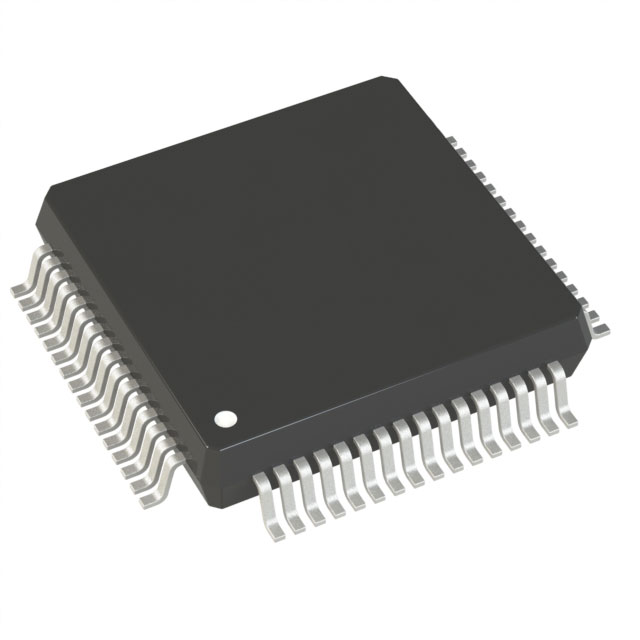

Analog Devices Inc. ADV7202KST is a 10-bit video analog-to-digital converter (ADC) and digital-to-analog converter (DAC) IC. This component features a 12-bit ADC for capturing analog video signals and four 10-bit DACs for outputting digital video. The ADV7202KST utilizes a serial data interface and is housed in a 64-lead LQFP (10x10) surface-mount package. It operates within an analog and digital supply voltage range of 4.75V to 5.25V and has an operating temperature range of 0°C to 70°C. This video codec is commonly employed in video processing applications, including broadcast equipment, digital televisions, and multimedia systems.
Additional Information
Series: -RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bag |
| Package / Case | 64-LQFP |
| Mounting Type | Surface Mount |
| Type | Video Codec |
| Data Interface | Serial |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 4.75V ~ 5.25V |
| Voltage - Supply, Digital | 4.75V ~ 5.25V |
| Resolution (Bits) | 12, 10 b |
| Dynamic Range, ADCs / DACs (db) Typ | - |
| Number of ADCs / DACs | 1 / 4 |
| S/N Ratio, ADCs / DACs (db) Typ | - |
| Sigma Delta | No |
| Supplier Device Package | 64-LQFP (10x10) |
