ADAU1381BCBZ-RL
IC AUDIO CODEC STEREO LN 30WLCSPManufacturer: Analog Devices Inc.
Categories: CODECS
Quality Control: Learn More

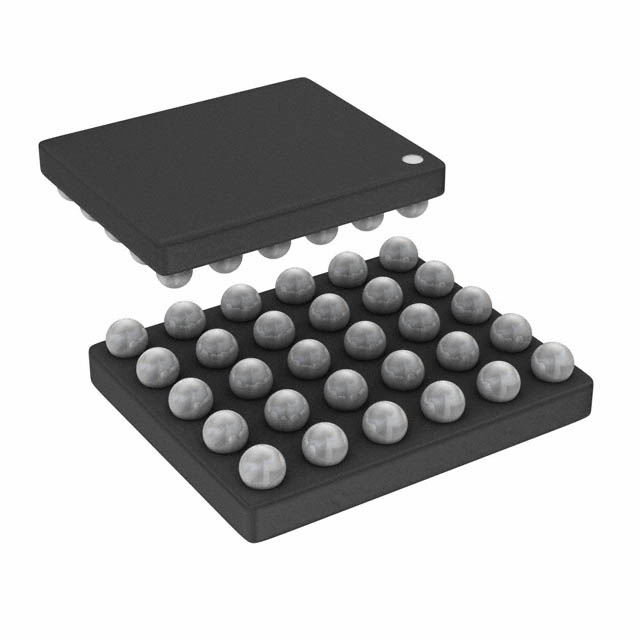

This Analog Devices Inc. ADAU1381BCBZ-RL is a stereo audio interface component offering a 24-bit resolution. It features a SPI data interface and is supplied in a 30-WLCSP (3.4x2.64) package for surface mounting. The device provides typical dynamic range of 96.5 dB for ADCs and 100 dB for DACs, with corresponding signal-to-noise ratios of 97 dB and 100 dB. Analog supply voltage ranges from 1.8V to 3.65V, while digital supply voltage is between 1.63V and 3.65V. Operating temperature spans from -25°C to 85°C. This component is suitable for applications in consumer electronics and automotive audio systems. The product is delivered on tape and reel.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 30-UFBGA, WLCSP |
| Mounting Type | Surface Mount |
| Type | Stereo Audio |
| Data Interface | SPI |
| Operating Temperature | -25°C ~ 85°C |
| Voltage - Supply, Analog | 1.8V ~ 3.65V |
| Voltage - Supply, Digital | 1.63V ~ 3.65V |
| Resolution (Bits) | 24 b |
| Dynamic Range, ADCs / DACs (db) Typ | 96.5 / 100 |
| Number of ADCs / DACs | 2 / 2 |
| S/N Ratio, ADCs / DACs (db) Typ | 97 / 100 |
| Sigma Delta | No |
| Supplier Device Package | 30-WLCSP (3.4x2.64) |
