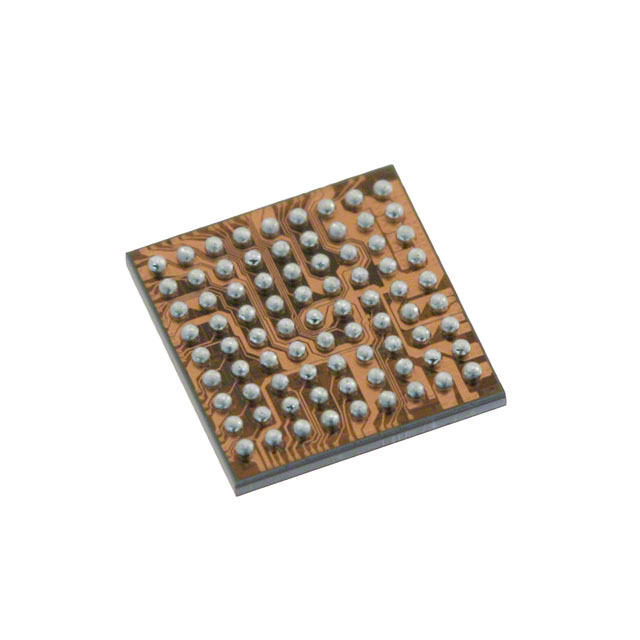

ADAU1373BCBZ-R7
IC CODEC LP W/HDPH AMP 81WLSCPManufacturer: Analog Devices Inc.
Categories: CODECS
Quality Control: Learn More
Analog Devices Inc. ADAU1373BCBZ-R7 is a 24-bit Sigma Delta audio CODEC featuring a low-power architecture with integrated headphone amplifier. This component supports I2C and serial data interfaces, offering 96 dB dynamic range for both ADCs and DACs. The ADAU1373BCBZ-R7 includes one ADC and two DACs, operating with analog supply voltages between 1.62V and 1.98V, and digital supply voltages from 1.08V to 1.98V. It is housed in an 81-WLCSP package with dimensions of 4.05x3.82, designed for surface mounting. Operating within a temperature range of -40°C to 85°C, this device is suitable for applications in consumer electronics, portable audio devices, and automotive audio systems. The component is supplied on tape and reel.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 81-UFBGA, WLCSP |
| Mounting Type | Surface Mount |
| Type | Audio |
| Data Interface | I2C, Serial |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 1.62V ~ 1.98V |
| Voltage - Supply, Digital | 1.08V ~ 1.98V |
| Resolution (Bits) | 24 b |
| Dynamic Range, ADCs / DACs (db) Typ | 96 / 96 |
| Number of ADCs / DACs | 1 / 2 |
| S/N Ratio, ADCs / DACs (db) Typ | 96 / 96 |
| Sigma Delta | Yes |
| Supplier Device Package | 81-WLCSP (4.05x3.82) |
