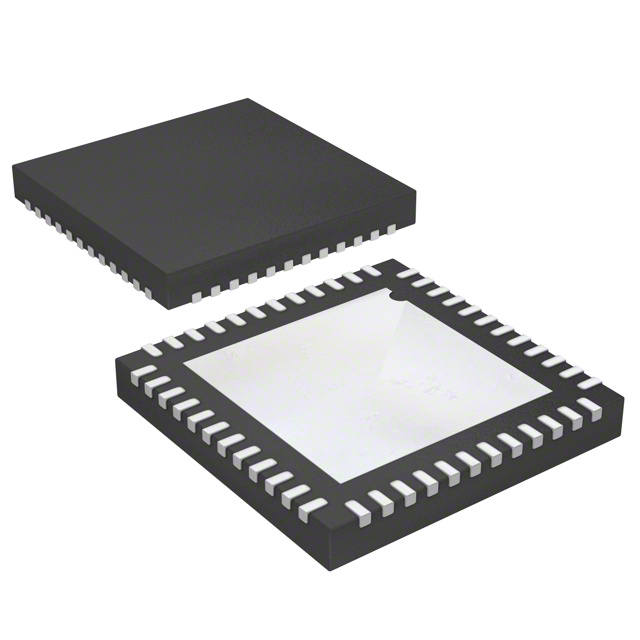

AD1987JCPZ
IC CODEC SOUNDMAX HD 48-LFCSPManufacturer: Analog Devices Inc.
Categories: CODECS
Quality Control: Learn More
Analog Devices Inc. SoundMAX® AD1987JCPZ is a high-definition audio codec featuring 24-bit resolution. This component offers 4 Analog-to-Digital Converters (ADCs) and 8 Digital-to-Analog Converters (DACs), supporting a serial data interface. The device is housed in a 48-LFCSP-VQ (7x7) package, designed for surface mounting. Operating temperature range is 0°C to 70°C, with analog supply voltage requirements between 3.13V and 3.46V, and digital supply voltage between 2.97V and 3.63V. The AD1987JCPZ is commonly utilized in consumer electronics, personal computers, and multimedia systems for its robust audio processing capabilities.
Additional Information
Series: SoundMAX®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 48-VFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Type | Audio, HD |
| Data Interface | Serial |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 3.13V ~ 3.46V |
| Voltage - Supply, Digital | 2.97V ~ 3.63V |
| Resolution (Bits) | 24 b |
| Dynamic Range, ADCs / DACs (db) Typ | - |
| Number of ADCs / DACs | 4 / 8 |
| S/N Ratio, ADCs / DACs (db) Typ | - |
| Sigma Delta | No |
| Supplier Device Package | 48-LFCSP-VQ (7x7) |
