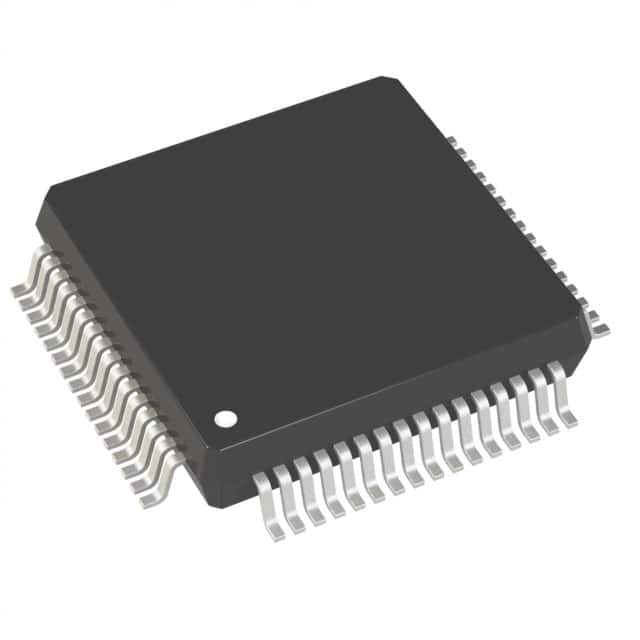

AD1836AAS
IC CODEC 4ADC/6DAC 24 BIT 52MQFPManufacturer: Analog Devices Inc.
Categories: CODECS
Quality Control: Learn More
The Analog Devices Inc. AD1836AAS is a high-performance, 24-bit, multi-channel audio codec featuring four analog-to-digital converters (ADCs) and six digital-to-analog converters (DACs). This general-purpose component utilizes a serial data interface for efficient communication. The AD1836AAS offers impressive dynamic range specifications of 105 dB for the ADCs and 108 dB for the DACs, with corresponding signal-to-noise ratios of 105 dB and 108 dB, respectively. Its Sigma-Delta architecture ensures excellent audio fidelity. Operating within an analog and digital supply voltage range of 4.75V to 5.25V, this device is designed for surface mount applications and comes in a 52-MQFP (10x10) package. It is suitable for use in demanding audio processing applications across various industries.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bag |
| Package / Case | 52-QFP |
| Mounting Type | Surface Mount |
| Type | General Purpose |
| Data Interface | Serial |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 4.75V ~ 5.25V |
| Voltage - Supply, Digital | 4.75V ~ 5.25V |
| Resolution (Bits) | 24 b |
| Dynamic Range, ADCs / DACs (db) Typ | 105 / 108 |
| Number of ADCs / DACs | 4 / 6 |
| S/N Ratio, ADCs / DACs (db) Typ | 105 / 108 |
| Sigma Delta | Yes |
| Supplier Device Package | 52-MQFP (10x10) |
