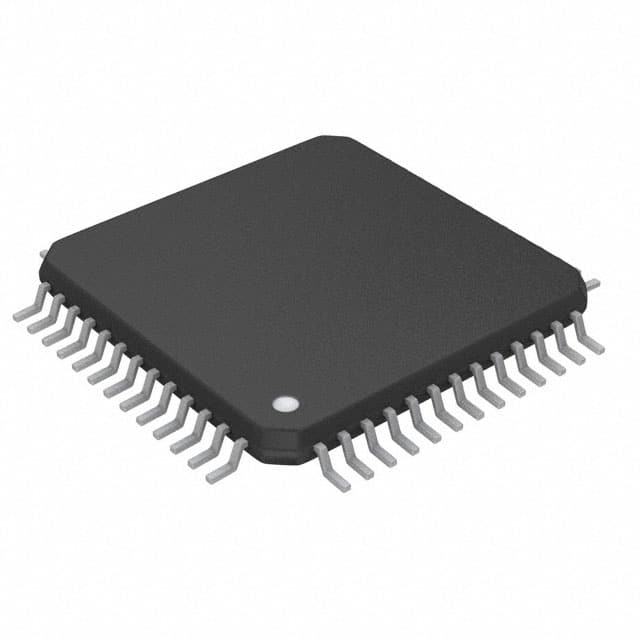

AD1835AS
IC CODEC 2ADC/8DAC 24 BIT 52MQFPManufacturer: Analog Devices Inc.
Categories: CODECS
Quality Control: Learn More
Analog Devices Inc. AD1835AS is a 24-bit stereo audio CODEC featuring 2 ADCs and 8 DACs. This Sigma Delta converter offers a high dynamic range of 105 dB for ADCs and 108 dB for DACs, with corresponding signal-to-noise ratios of 105 dB and 108 dB. The device utilizes a serial data interface for communication and is housed in a 52-MQFP (10x10) package, designed for surface mounting. Operating with analog and digital supply voltages between 4.5V and 5.5V, it is suitable for applications requiring high-fidelity audio processing. The AD1835AS finds use in consumer electronics, professional audio equipment, and automotive infotainment systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BagDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bag |
| Package / Case | 52-QFP |
| Mounting Type | Surface Mount |
| Type | Stereo Audio |
| Data Interface | Serial |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 4.5V ~ 5.5V |
| Voltage - Supply, Digital | 4.5V ~ 5.5V |
| Resolution (Bits) | 24 b |
| Dynamic Range, ADCs / DACs (db) Typ | 105 / 108 |
| Number of ADCs / DACs | 2 / 8 |
| S/N Ratio, ADCs / DACs (db) Typ | 105 / 108 |
| Sigma Delta | Yes |
| Supplier Device Package | 52-MQFP (10x10) |
