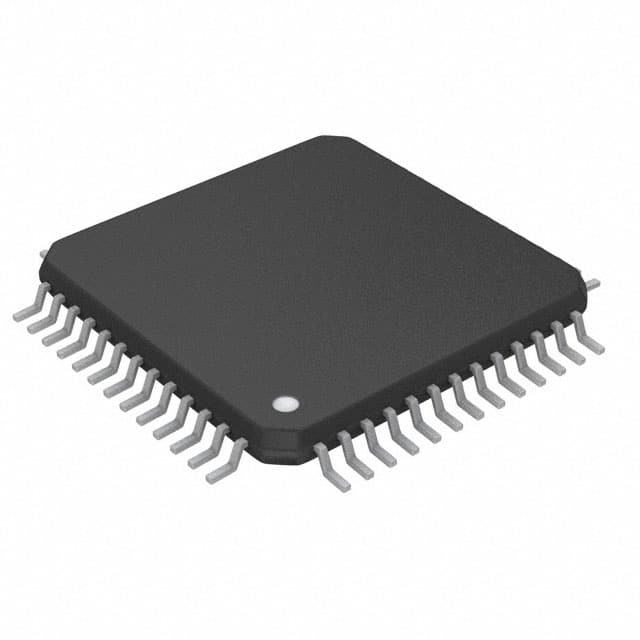

AD1835AASZ-REEL
IC CODEC 2ADC/8DAC 24BIT 52MQFPManufacturer: Analog Devices Inc.
Categories: CODECS
Quality Control: Learn More
The Analog Devices Inc. AD1835AASZ-REEL is a 24-bit, stereo audio CODEC featuring 2 analog-to-digital converters (ADCs) and 8 digital-to-analog converters (DACs). This component provides a high dynamic range of 105 dB for ADCs and 108 dB for DACs, with a corresponding signal-to-noise ratio of 105 dB and 108 dB, respectively. It utilizes a sigma-delta architecture and supports a serial data interface. The AD1835AASZ-REEL is housed in a 52-MQFP (10x10) package, designed for surface mounting. Operating with analog and digital supply voltages between 4.5V and 5.5V, this device is suitable for applications requiring high-fidelity audio processing, including professional audio equipment and consumer electronics. The component is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: Not For New DesignsPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 52-QFP |
| Mounting Type | Surface Mount |
| Type | Stereo Audio |
| Data Interface | Serial |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 4.5V ~ 5.5V |
| Voltage - Supply, Digital | 4.5V ~ 5.5V |
| Resolution (Bits) | 24 b |
| Dynamic Range, ADCs / DACs (db) Typ | 105 / 108 |
| Number of ADCs / DACs | 2 / 8 |
| S/N Ratio, ADCs / DACs (db) Typ | 105 / 108 |
| Sigma Delta | Yes |
| Supplier Device Package | 52-MQFP (10x10) |
