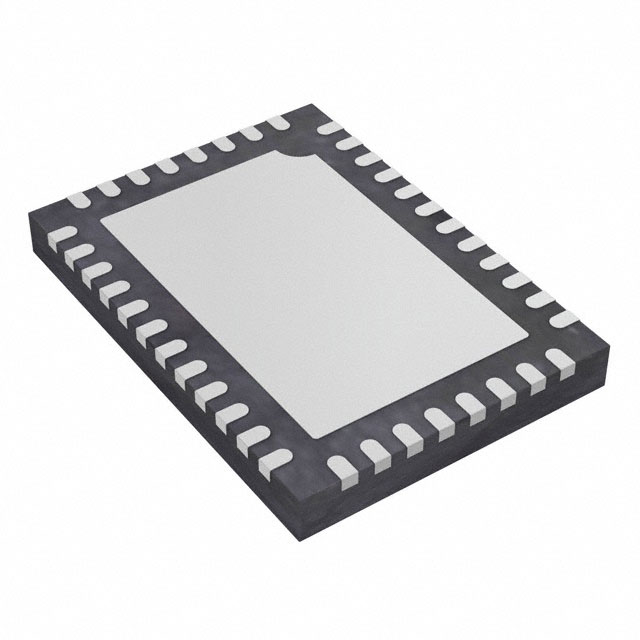

LTC6951IUHF-1
IC POWER MANAGEMENTManufacturer: Analog Devices Inc.
Categories: Clock Generators, PLLs, Frequency Synthesizers
Quality Control: Learn More
Analog Devices Inc. LTC6951IUHF-1 is a high-performance clock generator and frequency synthesizer. This advanced device features a single circuit with a maximum frequency capability of 2.7GHz, making it suitable for demanding applications. The LTC6951IUHF-1 supports differential clock inputs and outputs, providing robust signal integrity. Its integrated PLL architecture allows for flexible frequency synthesis with a 1:5 input-to-output ratio. The component is equipped with a divider function and outputs CML and LVDS signals. Designed for surface mount installation, it comes in a 40-WFQFN exposed pad package. Operating within a temperature range of -40°C to 105°C and requiring a supply voltage between 3.15V and 3.45V, this component finds application in telecommunications, data communications, and high-speed computing systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 40-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Output | CML, LVDS |
| Frequency - Max | 2.7GHz |
| Input | Clock |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply | 3.15V ~ 3.45V |
| Ratio - Input:Output | 1:5 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 40-QFN (5x7) |
| PLL | Yes |
| Divider/Multiplier | Yes/No |
| Number of Circuits | 1 |
| Programmable | Not Verified |
