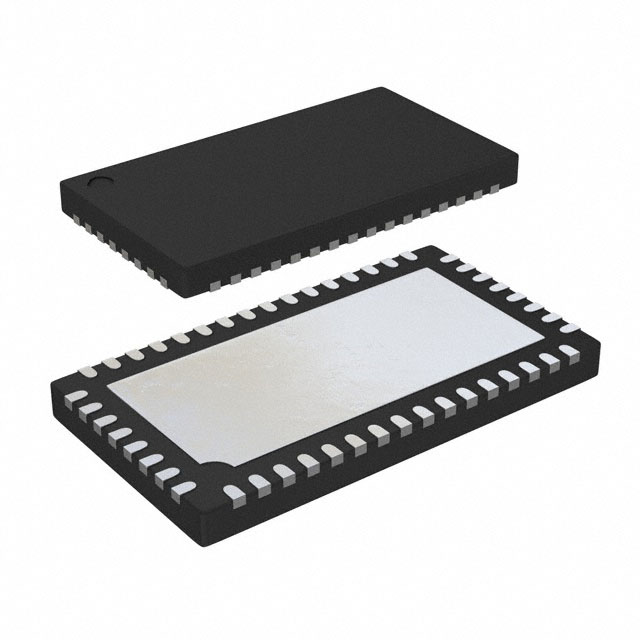

LTC6950IUHH
IC CLK/FREQ SYNTH 48QFNManufacturer: Analog Devices Inc.
Categories: Clock Generators, PLLs, Frequency Synthesizers
Quality Control: Learn More
The Analog Devices Inc. LTC6950IUHH is a versatile clock and frequency synthesizer, designed as a fanout buffer. This device operates at a maximum frequency of 1.4GHz. It features a 1:5 input to output ratio, simplifying clock distribution across complex designs. The LTC6950IUHH supports differential input and output, with selectable output formats including CMOS, LVDS, and PECL, providing flexibility for various interfacing requirements. Housed in a 48-QFN (5x9) package with an exposed pad, it is suitable for surface mount applications. Its robust operating temperature range of -40°C to 105°C makes it ideal for demanding environments found in telecommunications, data acquisition, and high-speed digital systems. The device operates from a supply voltage range of 3.15V to 5.25V.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 48-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Output | CMOS, LVDS, PECL |
| Frequency - Max | 1.4GHz |
| Type | Clock/Frequency Synthesizer, Fanout Buffer (Distribution) |
| Input | Clock |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply | 3.15V ~ 5.25V |
| Ratio - Input:Output | 1:5 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 48-QFN (5x9) |
| PLL | Yes |
| Divider/Multiplier | Yes/No |
| Number of Circuits | 1 |
| Programmable | Not Verified |
