LTC6946IUFD-4#PBF
IC CLK/FREQ SYNTH 28QFNManufacturer: Analog Devices Inc.
Categories: Clock Generators, PLLs, Frequency Synthesizers
Quality Control: Learn More
Analog Devices Inc. LTC6946IUFD-4-PBF is an Integer-N Clock/Frequency Synthesizer designed for RF and IF applications. This single-circuit device operates with a maximum output frequency of 6.39GHz, featuring both clock input and clock output. It supports differential input and output configurations, and incorporates divider and multiplier functionalities. The LTC6946IUFD-4-PBF is housed in a 28-WFQFN exposed pad package, suitable for surface mount applications. It requires a supply voltage ranging from 3.15V to 5.25V and operates within an ambient temperature range of -40°C to 105°C. This component is commonly utilized in wireless infrastructure, high-speed data converters, and test and measurement equipment.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |

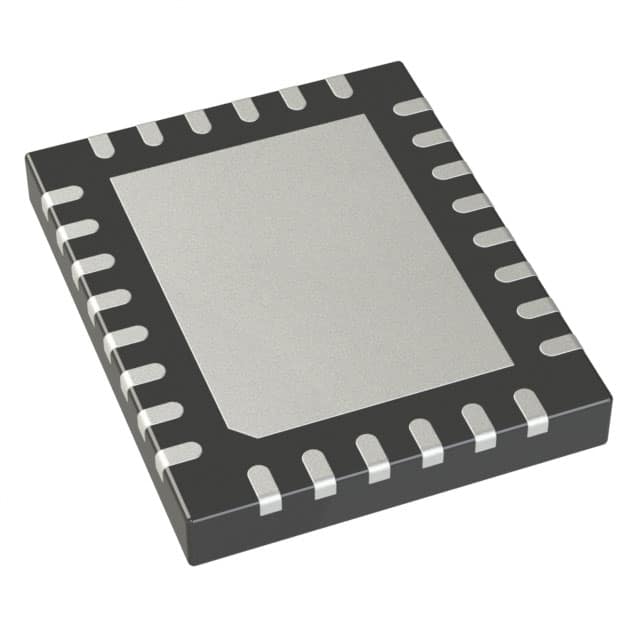

| Package / Case | 28-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Output | Clock |
| Frequency - Max | 6.39GHz |
| Type | Clock/Frequency Synthesizer (RF/IF), Integer N |
| Input | Clock |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply | 3.15V ~ 5.25V |
| Ratio - Input:Output | 1:1 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 28-QFN (4x5) |
| PLL | Yes |
| Divider/Multiplier | Yes/Yes |
| Number of Circuits | 1 |
| Programmable | Not Verified |
