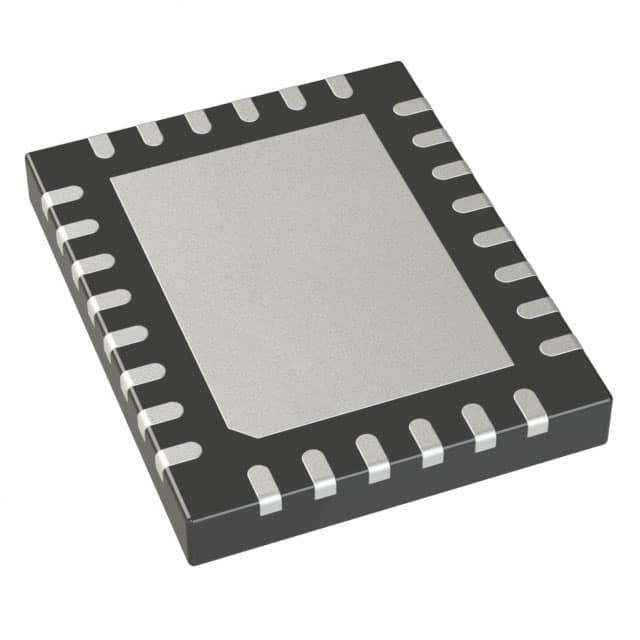

LTC6946IUFD-1#PBF
IC CLK/FREQ SYNTH 28QFNManufacturer: Analog Devices Inc.
Categories: Clock Generators, PLLs, Frequency Synthesizers
Quality Control: Learn More
Analog Devices Inc. LTC6946IUFD-1-PBF is an Integer-N Clock/Frequency Synthesizer designed for RF and IF applications. This single-circuit device operates with a maximum frequency of 3.74GHz and supports differential clock input and output. It features integrated divider and multiplier capabilities, with a specified input-to-output ratio of 1:1. The LTC6946IUFD-1-PBF is housed in a 28-WFQFN exposed pad package, suitable for surface mount applications. Operating voltage ranges from 3.15V to 5.25V, with an operating temperature range of -40°C to 105°C. This component is commonly utilized in wireless communications infrastructure and test and measurement equipment.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 28-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Output | Clock |
| Frequency - Max | 3.74GHz |
| Type | Clock/Frequency Synthesizer (RF/IF), Integer N |
| Input | Clock |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply | 3.15V ~ 5.25V |
| Ratio - Input:Output | 1:1 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 28-QFN (4x5) |
| PLL | Yes |
| Divider/Multiplier | Yes/Yes |
| Number of Circuits | 1 |
| Programmable | Not Verified |
