HMC837LP6CE

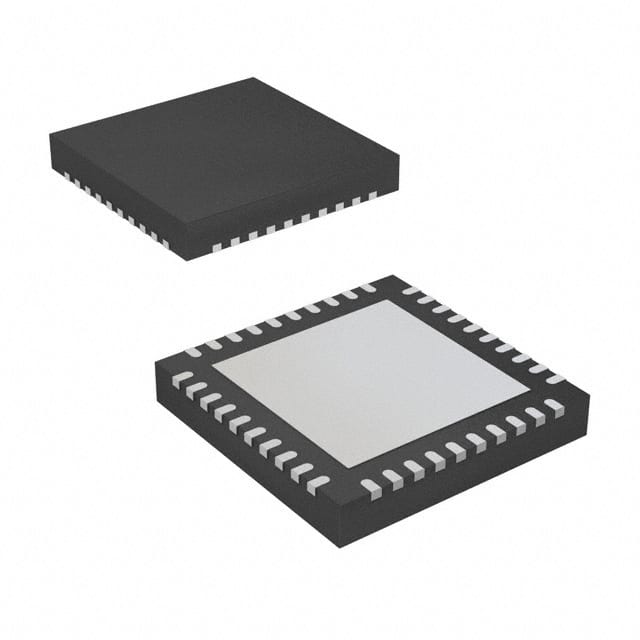

IC PLL W/VCO FRACTIONAL-N 40-QFNManufacturer: Analog Devices Inc.
Categories: Clock Generators, PLLs, Frequency Synthesizers
Quality Control: Learn More
The Analog Devices Inc. HMC837LP6CE is a fractional-N Phase-Locked Loop (PLL) integrated circuit featuring an integrated Voltage-Controlled Oscillator (VCO). This component operates with a maximum frequency of 4.6GHz and supports both input and output clock signals. The HMC837LP6CE offers versatile divider and multiplier capabilities, enabling flexible frequency synthesis. It is packaged in a 40-VFQFN exposed pad (6x6mm) for surface mounting. Designed for robust performance, this device operates within a temperature range of -40°C to 85°C and requires a supply voltage between 3V and 5.2V. Its architecture makes it suitable for applications in wireless infrastructure, test and measurement equipment, and high-speed digital systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Strip |
| Package / Case | 40-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Output | Clock |
| Frequency - Max | 4.6GHz |
| Input | Clock |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3V ~ 5.2V |
| Ratio - Input:Output | 1:1 |
| Differential - Input:Output | No/Yes |
| Supplier Device Package | 40-SMT (6x6) |
| PLL | Yes |
| Divider/Multiplier | Yes/Yes |
| Number of Circuits | 1 |
| Programmable | Not Verified |
