HMC820LP6CE

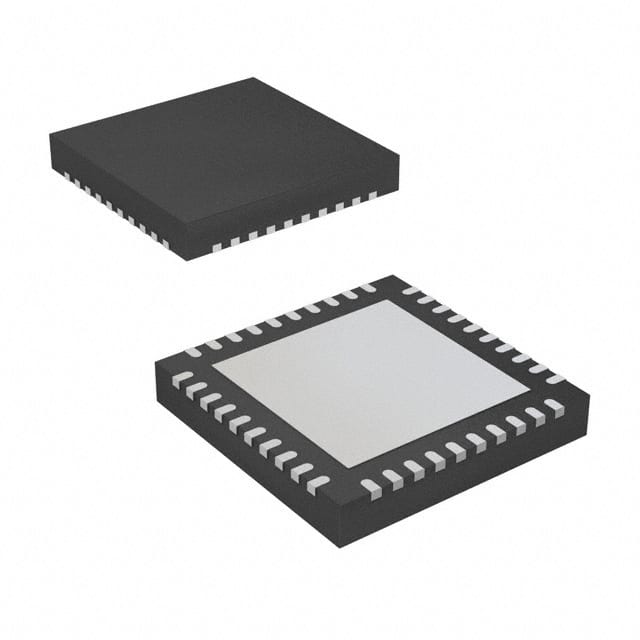

IC PLL W/VCO FRACTIONAL-N 40-QFNManufacturer: Analog Devices Inc.
Categories: Clock Generators, PLLs, Frequency Synthesizers
Quality Control: Learn More
Analog Devices Inc. HMC820LP6CE is a fractional-N Phase-Locked Loop (PLL) integrated circuit featuring an integrated Voltage-Controlled Oscillator (VCO). This component operates up to 5.1GHz, offering precise frequency synthesis capabilities. It includes configurable divider and multiplier functions, enabling flexible ratio settings from input to output. The HMC820LP6CE is supplied in a 40-lead 6x6mm exposed pad Very Thin Fine-Pitch Quad Flat No-Lead (VFQFN) package, suitable for surface mounting. Designed for a supply voltage range of 3V to 5.2V and an operating temperature of -40°C to 85°C, this device is utilized in applications such as wireless communications infrastructure and high-speed digital systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Strip |
| Package / Case | 40-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Output | Clock |
| Frequency - Max | 5.1GHz |
| Input | Clock |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3V ~ 5.2V |
| Ratio - Input:Output | 1:1 |
| Differential - Input:Output | No/Yes |
| Supplier Device Package | 40-SMT (6x6) |
| PLL | Yes |
| Divider/Multiplier | Yes/Yes |
| Number of Circuits | 1 |
| Programmable | Not Verified |
Request a Quote
