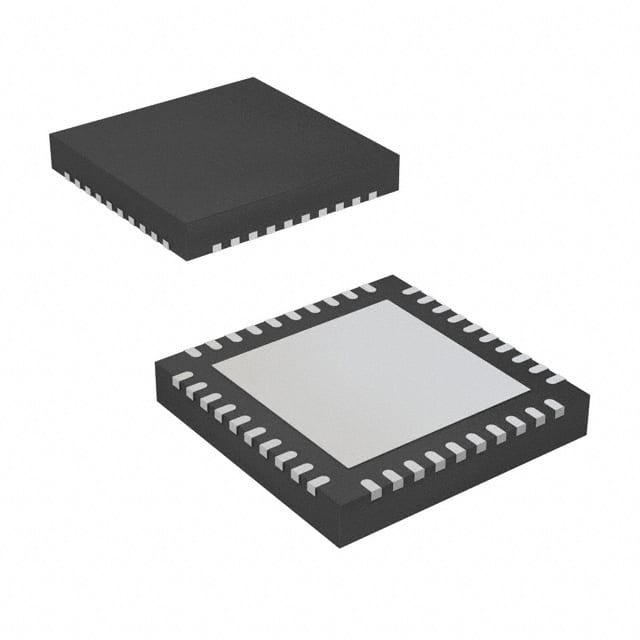

HMC778LP6CE
IC PLL W/VCO FRACT-N 40-QFNManufacturer: Analog Devices Inc.
Categories: Clock Generators, PLLs, Frequency Synthesizers
Quality Control: Learn More
Analog Devices Inc. HMC778LP6CE is a 10.8 GHz Phase-Locked Loop (PLL) synthesizer with an integrated Voltage-Controlled Oscillator (VCO). This component features fractional-N synthesis, enabling fine frequency resolution. Designed for demanding RF applications, the HMC778LP6CE operates from a 2.7V to 5.25V supply and is housed in a 40-VFQFN exposed pad package suitable for surface mounting. Its single-circuit architecture and clock input/output interfaces are optimized for high-performance signal generation. The device is suitable for use in wireless infrastructure, test and measurement equipment, and satellite communications. Operating temperature ranges from -40°C to 85°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Strip |
| Package / Case | 40-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Output | Clock |
| Frequency - Max | 10.8GHz |
| Input | Clock |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.7V ~ 5.25V |
| Ratio - Input:Output | 1:1 |
| Differential - Input:Output | No/No |
| Supplier Device Package | 40-SMT (6x6) |
| PLL | Yes |
| Divider/Multiplier | Yes/No |
| Number of Circuits | 1 |
| Programmable | Not Verified |
