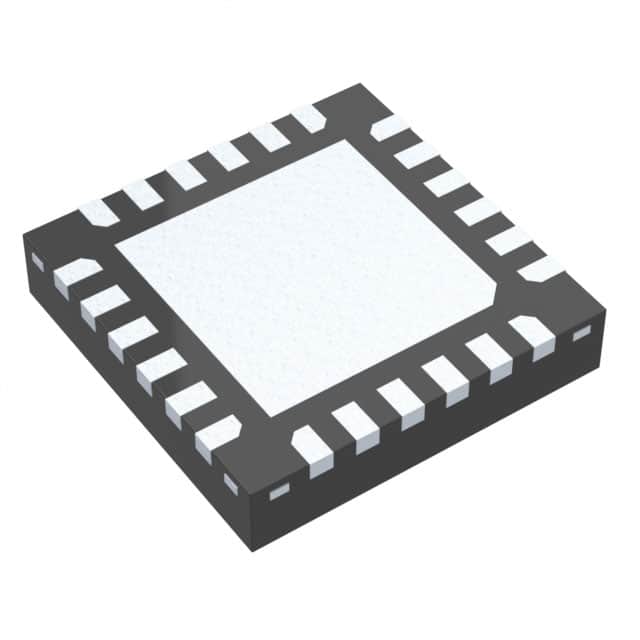

HMC704LP4E
IC INTEGER-N/FRACTIONAL 24QFNManufacturer: Analog Devices Inc.
Categories: Clock Generators, PLLs, Frequency Synthesizers
Quality Control: Learn More
Analog Devices Inc. HMC704LP4E is an Integer-N/Fractional-N synthesizer with a maximum output frequency of 8GHz. This device features a 1:1 input to output ratio and supports both Integer-N and Fractional-N synthesis modes. Packaged in a 24-VFQFN exposed pad (4x4), the HMC704LP4E is designed for surface mounting. It operates with a supply voltage range of 3V to 5.2V and an operating temperature range of -40°C to 85°C. The component includes a PLL and offers CMOS input and output. This versatile frequency synthesizer is commonly utilized in broadband wireless applications, radar systems, and satellite communications.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Strip |
| Package / Case | 24-VFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Output | CMOS |
| Frequency - Max | 8GHz |
| Type | Integer-N/Fractional-N |
| Input | CMOS |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3V ~ 5.2V |
| Ratio - Input:Output | 1:1 |
| Differential - Input:Output | Yes/No |
| Supplier Device Package | 24-QFN (4x4) |
| PLL | Yes |
| Divider/Multiplier | Yes/No |
| Number of Circuits | 1 |
| Programmable | Not Verified |
