ADF5610BCCZ
IC INTEGER-N/FRACTIONAL 48LGAManufacturer: Analog Devices Inc.
Categories: Clock Generators, PLLs, Frequency Synthesizers
Quality Control: Learn More

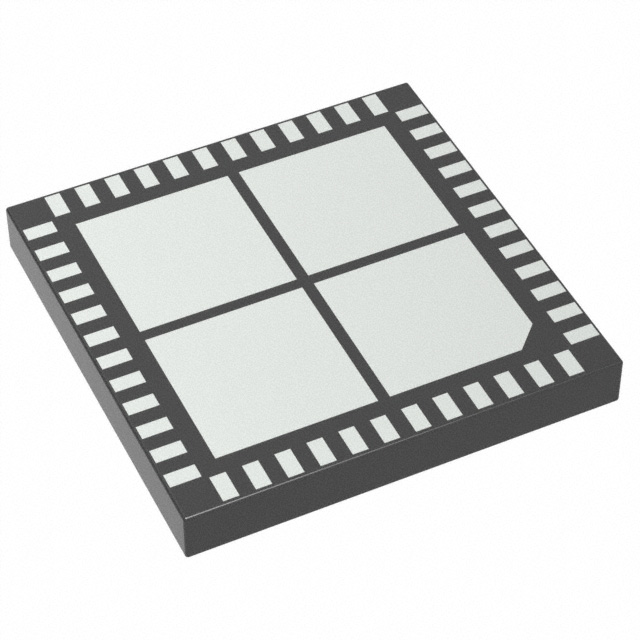

Analog Devices Inc. ADF5610BCCZ is a high-performance Integer-N/Fractional-N Phase-Locked Loop (PLL) synthesizer with an integrated Voltage-Controlled Oscillator (VCO). This device operates up to a maximum frequency of 14.6 GHz, offering a versatile solution for demanding RF applications. It features a single circuit with a 48-LGA (7x7) exposed pad package for surface mounting, designed for efficient thermal management. The ADF5610BCCZ supports both integer and fractional frequency division, enabling precise phase noise and spur performance. Input is provided via a clock signal, and the output is also a clock signal, with a configurable ratio of 1:2. The device supports dual supply voltage ranges, 3.1V to 3.5V and 4.75V to 5.25V, and operates within an industrial temperature range of -40°C to 85°C. Applications include wireless infrastructure, test and measurement equipment, and radar systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 48-VFLGA Exposed Pad |
| Mounting Type | Surface Mount |
| Output | Clock |
| Frequency - Max | 14.6GHz |
| Type | Integer-N/Fractional-N, VCO |
| Input | Clock |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3.1V ~ 3.5V, 4.75V ~ 5.25V |
| Ratio - Input:Output | 1:2 |
| Differential - Input:Output | No/Yes |
| Supplier Device Package | 48-LGA (7x7) |
| PLL | Yes |
| Divider/Multiplier | Yes/Yes |
| Number of Circuits | 1 |
| Programmable | Not Verified |
