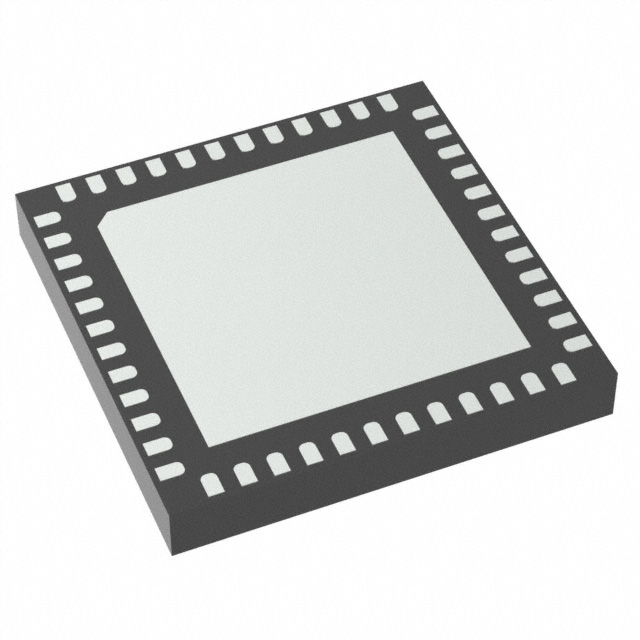

ADF4377BCCZ-U3
62MHZ-32GHZ ULTRA WIDEBAND PLLVCManufacturer: Analog Devices Inc.
Categories: Clock Generators, PLLs, Frequency Synthesizers
Quality Control: Learn More
Analog Devices Inc. ADF4377BCCZ-U3 is an ultra-wideband Phase-Locked Loop (PLL) frequency synthesizer and Voltage-Controlled Oscillator (VCO) IC. This Integer-N synthesizer operates across a broad frequency range, supporting output frequencies up to 12.8 GHz. It features a differential input and output configuration, facilitating robust signal integrity in demanding applications. The device includes a divider capability but not a multiplier. Designed for surface mount installation, it is supplied in a 48-LGA (7x7) package with an exposed pad for enhanced thermal performance. The ADF4377BCCZ-U3 is suitable for applications requiring precise frequency generation and synthesis, including telecommunications infrastructure, test and measurement equipment, and radar systems. It accommodates supply voltages from 3.15V to 3.45V and 4.75V to 5.25V, with an operating temperature range of -40°C to 105°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: DiscontinuedPackaging: BoxDownload Free CAD Model:
Technical Details:
| Packaging | Box |
| Package / Case | 48-TFLGA Exposed Pad |
| Mounting Type | Surface Mount |
| Output | Clock |
| Frequency - Max | 12.8GHz |
| Type | Integer-N Synthesizer/VCO |
| Input | - |
| Operating Temperature | -40°C ~ 105°C (TA) |
| Voltage - Supply | 3.15V ~ 3.45V, 4.75V ~ 5.25V |
| Ratio - Input:Output | 1:3 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 48-LGA (7x7) |
| PLL | Yes |
| Divider/Multiplier | Yes/No |
| Number of Circuits | 1 |
| Programmable | Not Verified |
