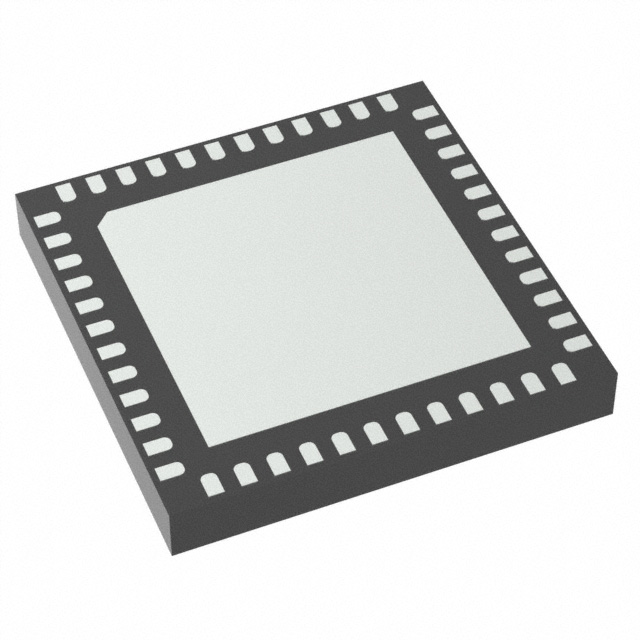

ADF4372BCCZ
IC INTEGER N SYNTH 48LGAManufacturer: Analog Devices Inc.
Categories: Clock Generators, PLLs, Frequency Synthesizers
Quality Control: Learn More
Analog Devices Inc. ADF4372BCCZ is an Integer N Synthesizer (RF) IC designed for high-frequency applications. This component operates up to 16GHz, supporting a voltage supply range of 3.15V to 3.45V. It features a versatile input that accepts CMOS and ECL signals and delivers a clock output. The device includes integrated divider and multiplier functions, with a configurable input-to-output ratio of up to 1:4. Its architecture incorporates a Phase-Locked Loop (PLL) for precise frequency generation. Packaged in a 48-LGA (7x7) with an exposed pad, it is suitable for surface mount applications and operates within a temperature range of -40°C to 105°C. This synthesizer finds application in demanding sectors such as wireless communications infrastructure, test and measurement equipment, and radar systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 48-TFLGA Exposed Pad |
| Mounting Type | Surface Mount |
| Output | Clock |
| Frequency - Max | 16GHz |
| Type | Integer N Synthesizer (RF) |
| Input | CMOS, ECL |
| Operating Temperature | -40°C ~ 105°C |
| Voltage - Supply | 3.15V ~ 3.45V |
| Ratio - Input:Output | 1:4 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 48-LGA (7x7) |
| PLL | Yes |
| Divider/Multiplier | Yes/Yes |
| Number of Circuits | 1 |
| Programmable | Not Verified |
