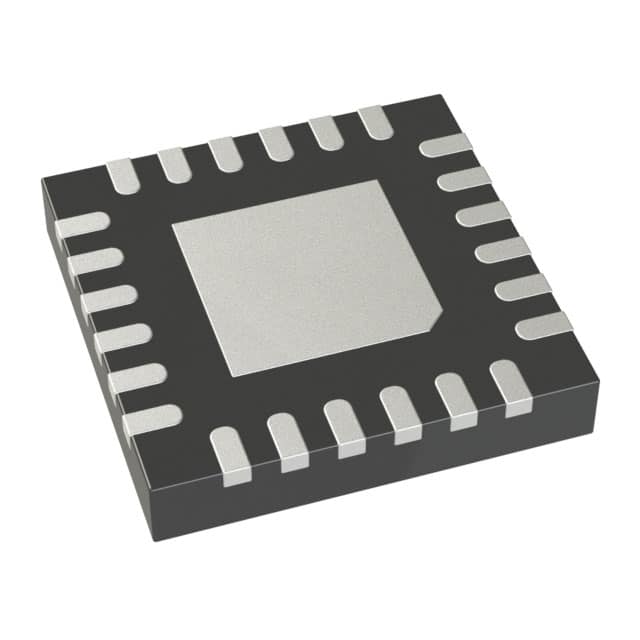

ADF4159WCCPZ
IC FREQ SYNTH 24LFCSPManufacturer: Analog Devices Inc.
Categories: Clock Generators, PLLs, Frequency Synthesizers
Quality Control: Learn More
Analog Devices Inc. ADF4159WCCPZ is a 13GHz frequency synthesizer IC. This device, part of the frequency synthesizer category, features a 24-LFCSP-WQ (4x4) package and is designed for surface mount applications. The ADF4159WCCPZ supports a supply voltage range of 1.62V to 3.45V and operates within an automotive temperature grade of -40°C to 125°C. It incorporates a Phase-Locked Loop (PLL) architecture and offers a maximum frequency of 13GHz. Input signals can be CMOS or TTL, with both CMOS and differential inputs/outputs supported. The device includes programmable divider and multiplier functions, with an input-to-output ratio of 2:1. This component is suitable for demanding applications within the automotive industry.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 24-WFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Output | CMOS |
| Frequency - Max | 13GHz |
| Type | Frequency Synthesizer |
| Input | CMOS, TTL |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Supply | 1.62V ~ 3.45V |
| Ratio - Input:Output | 2:1 |
| Differential - Input:Output | Yes/No |
| Supplier Device Package | 24-LFCSP-WQ (4x4) |
| PLL | Yes |
| Divider/Multiplier | Yes/No |
| Grade | Automotive |
| Number of Circuits | 1 |
| Programmable | Not Verified |
