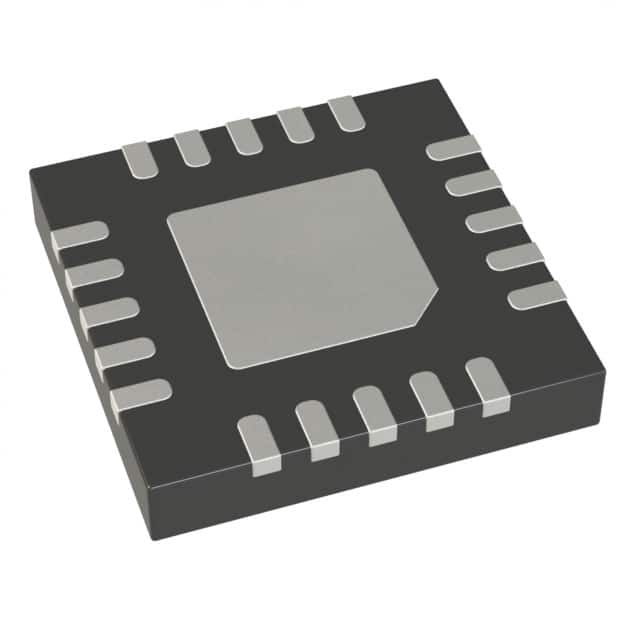

ADF4113BCPZ-RL7
IC CLK/FREQ SYNTH 20LFCSPManufacturer: Analog Devices Inc.
Categories: Clock Generators, PLLs, Frequency Synthesizers
Quality Control: Learn More
Analog Devices Inc. ADF4113BCPZ-RL7 is a versatile RF Clock/Frequency Synthesizer IC designed for high-performance applications. This device integrates a voltage-controlled oscillator (VCO) and a phase-frequency detector (PFD) to enable precise frequency generation up to 4GHz. It features a programmable frequency divider, allowing for flexible output frequency selection and a variety of phase-locked loop (PLL) configurations. The ADF4113BCPZ-RL7 supports both CMOS and TTL input signals and offers differential input/output capabilities for enhanced signal integrity. Packaged in a compact 20-LFCSP (4x4) with an exposed pad, this component is suitable for surface-mount assembly. Its operating temperature range of -40°C to 85°C makes it robust for demanding environments. This synthesizer is commonly utilized in wireless infrastructure, test and measurement equipment, and radar systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 20-WFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Output | Clock |
| Frequency - Max | 4GHz |
| Type | Clock/Frequency Synthesizer (RF) |
| Input | CMOS, TTL |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 2.7V ~ 5.5V |
| Ratio - Input:Output | 2:1 |
| Differential - Input:Output | Yes/No |
| Supplier Device Package | 20-LFCSP (4x4) |
| PLL | Yes |
| Divider/Multiplier | Yes/No |
| Number of Circuits | 1 |
| Programmable | Not Verified |
