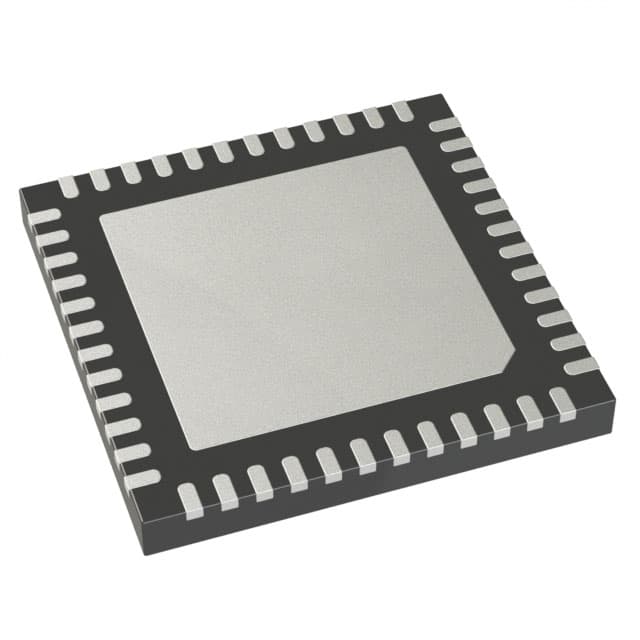

AD9578BCPZ
IC PLL CLOCK GEN 20MHZ 48LFCSPManufacturer: Analog Devices Inc.
Categories: Clock Generators, PLLs, Frequency Synthesizers
Quality Control: Learn More
Analog Devices Inc. AD9578BCPZ is a single-circuit PLL clock generator featuring a maximum output frequency of 919MHz. This device supports a wide range of input interfaces including LVCMOS, LVDS, LVPECL, and crystal oscillators, and offers multiple output formats such as HCSL, LVCMOS, LVDS, and LVPECL. The AD9578BCPZ includes a PLL with bypass functionality and an input-to-output ratio configurable from 2:5. Designed for surface mounting, it is housed in a 48-LFCSP (7x7) package with an exposed pad. Operating across a temperature range of -25°C to 85°C, this component is suitable for applications in telecommunications, data acquisition, and industrial automation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 48-WFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Output | HCSL, LVCMOS, LVDS, LVPECL |
| Frequency - Max | 919MHz |
| Input | LVCMOS, LVDS, LVPECL, Crystal |
| Operating Temperature | -25°C ~ 85°C |
| Voltage - Supply | 2.375V ~ 3.63V |
| Ratio - Input:Output | 2:5 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 48-LFCSP (7x7) |
| PLL | Yes with Bypass |
| Divider/Multiplier | Yes/No |
| Number of Circuits | 1 |
| Programmable | Not Verified |
