AD9517-4ABCPZ-RL7
IC CLOCK GENERATOR 48LFCSPManufacturer: Analog Devices Inc.
Categories: Clock Generators, PLLs, Frequency Synthesizers
Quality Control: Learn More

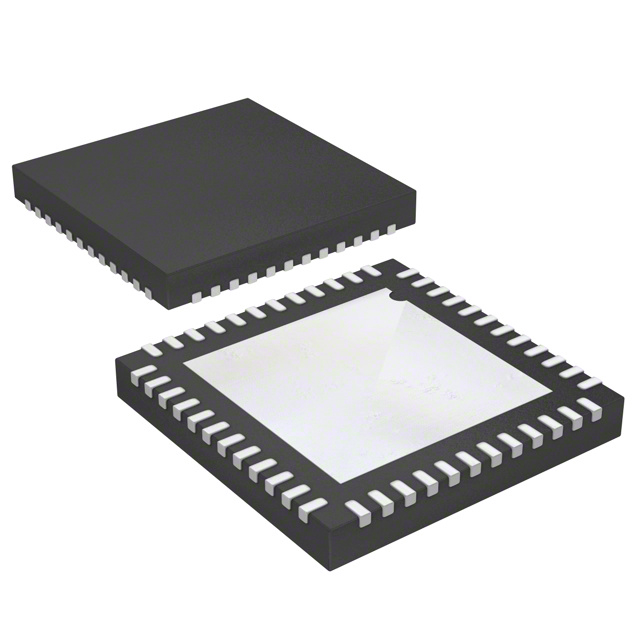

Analog Devices Inc. AD9517-4ABCPZ-RL7 is a high-performance clock generator and fanout distribution IC designed for demanding applications. This device offers a maximum output frequency of 1.8GHz and supports a comprehensive range of input formats including CMOS, LVDS, and LVPECL. The AD9517-4ABCPZ-RL7 features a PLL and a 1:12 input-to-output ratio, enabling flexible clock generation and distribution. It provides both differential and single-ended output capabilities, supporting CMOS, LVDS, and LVPECL signal types. The device is packaged in a 48-LFCSP-VQ (7x7) with an exposed pad, suitable for surface mounting and supplied on tape and reel. Operating across a temperature range of -40°C to 85°C, this component is utilized in telecommunications, data communications, and high-speed digital systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 48-VFQFN Exposed Pad, CSP |
| Mounting Type | Surface Mount |
| Output | CMOS, LVDS, LVPECL |
| Frequency - Max | 1.8GHz |
| Type | Clock Generator, Fanout Distribution |
| Input | CMOS, LVDS, LVPECL |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3.135V ~ 3.465V |
| Ratio - Input:Output | 1:12 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 48-LFCSP-VQ (7x7) |
| PLL | Yes |
| Divider/Multiplier | Yes/No |
| Number of Circuits | 1 |
| Programmable | Not Verified |
Request a Quote
