LTC6957IMS-3#PBF
IC CLK BUFFER DVR 1:2 12MSOPManufacturer: Analog Devices Inc.
Categories: Clock Buffers, Drivers
Quality Control: Learn More
The Analog Devices Inc. LTC6957IMS-3-PBF is a versatile 1:2 clock fanout buffer designed for high-performance applications. This monolithic integrated circuit supports input standards including CML, CMOS, LVDS, and LVPECL, with a maximum operating frequency of 300 MHz. Its output stage is CMOS compatible, providing efficient clock distribution. The device is packaged in a 12-MSOP (0.118", 3.00mm Width) for surface mounting and operates within a temperature range of -40°C to 85°C. The LTC6957IMS-3-PBF is suitable for demanding applications in sectors such as telecommunications, data acquisition, and high-speed digital systems requiring precise clock buffering and distribution.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: Last Time BuyPackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 12-TSSOP (0.118"", 3.00mm Width) |
| Number of Circuits | 1 |
| Mounting Type | Surface Mount |
| Output | CMOS |
| Type | Fanout Buffer (Distribution) |
| Input | CML, CMOS, LVDS, LVPECL |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3.15V ~ 3.45V |
| Ratio - Input:Output | 1:2 |
| Differential - Input:Output | Yes/No |
| Supplier Device Package | 12-MSOP |
| Frequency - Max | 300 MHz |
Request a Quote
Clients Also Buy

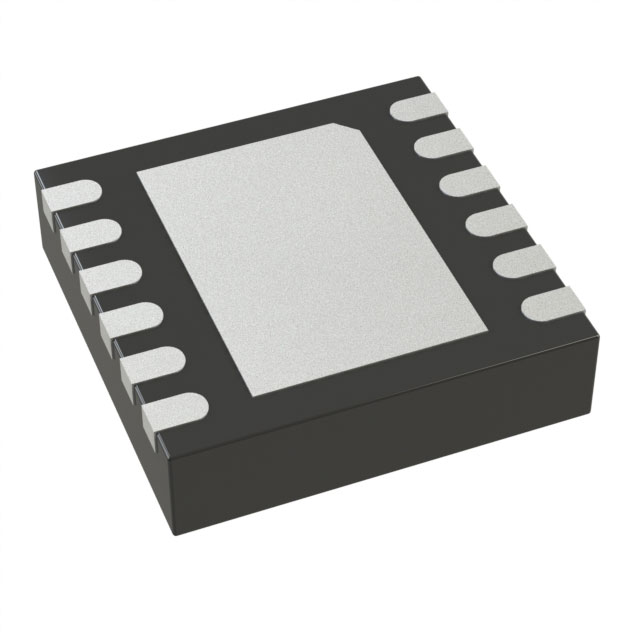

LTC6957IDD-4#PBF
