LTC6957IDD-1#TRPBF
IC CLK BUFFER DVR 1:2 12DFNManufacturer: Analog Devices Inc.
Categories: Clock Buffers, Drivers
Quality Control: Learn More
The Analog Devices Inc. LTC6957IDD-1-TRPBF is a high-performance clock fanout buffer designed for demanding applications. This 1:2 distribution buffer supports a maximum frequency of 300 MHz, accepting a variety of input logic levels including CML, CMOS, LVDS, and LVPECL. The output stage is optimized for LVPECL signaling. Operating within a voltage range of 3.15V to 3.45V, this device features a single circuit and is housed in a compact 12-WFDFN exposed pad package, suitable for surface mounting. Its robust design and wide operating temperature range of -40°C to 85°C make it ideal for use in telecommunications, data acquisition, and high-speed computing systems. The component is supplied on tape and reel for efficient manufacturing processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |

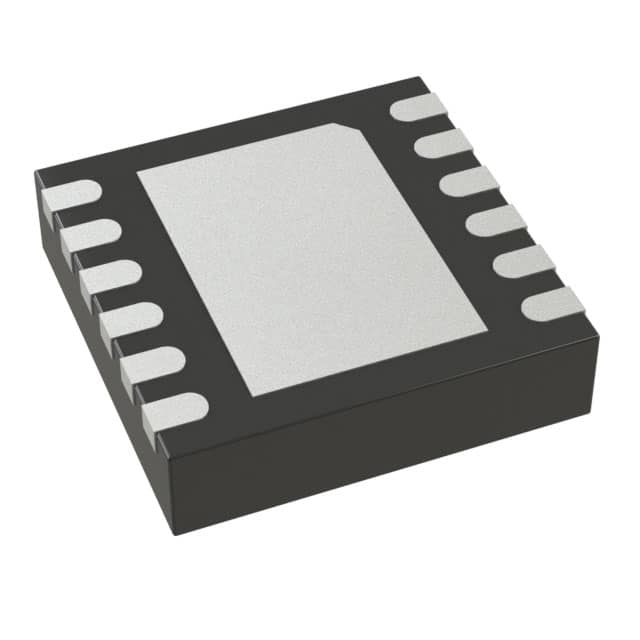

| Package / Case | 12-WFDFN Exposed Pad |
| Number of Circuits | 1 |
| Mounting Type | Surface Mount |
| Output | LVPECL |
| Type | Fanout Buffer (Distribution) |
| Input | CML, CMOS, LVDS, LVPECL |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3.15V ~ 3.45V |
| Ratio - Input:Output | 1:2 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 12-DFN (3x3) |
| Frequency - Max | 300 MHz |
