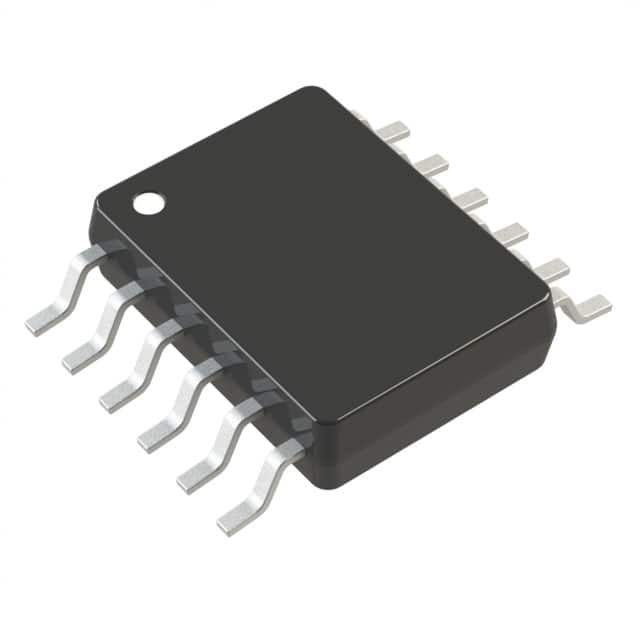

LTC6957HMS-4#TRPBF
IC CLK BUFFER DVR 1:2 12MSOPManufacturer: Analog Devices Inc.
Categories: Clock Buffers, Drivers
Quality Control: Learn More
The Analog Devices Inc. LTC6957HMS-4-TRPBF is a versatile clock fanout buffer designed for high-speed signal distribution. This component features a 1:2 output ratio, capable of distributing clock signals up to 300 MHz. It supports a variety of input logic levels including CML, CMOS, LVDS, and LVPECL, with a CMOS output. The device is housed in a compact 12-MSOP package, suitable for surface mount applications. Operating across a temperature range of -40°C to 125°C and requiring a supply voltage of 3.15V to 3.45V, the LTC6957HMS-4-TRPBF is engineered for demanding applications in sectors such as telecommunications, data acquisition, and high-performance computing. Its differential input/output capability further enhances its utility in noise-sensitive environments.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: Last Time BuyPackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-TSSOP (0.118"", 3.00mm Width) |
| Number of Circuits | 1 |
| Mounting Type | Surface Mount |
| Output | CMOS |
| Type | Fanout Buffer (Distribution) |
| Input | CML, CMOS, LVDS, LVPECL |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Supply | 3.15V ~ 3.45V |
| Ratio - Input:Output | 1:2 |
| Differential - Input:Output | Yes/No |
| Supplier Device Package | 12-MSOP |
| Frequency - Max | 300 MHz |
