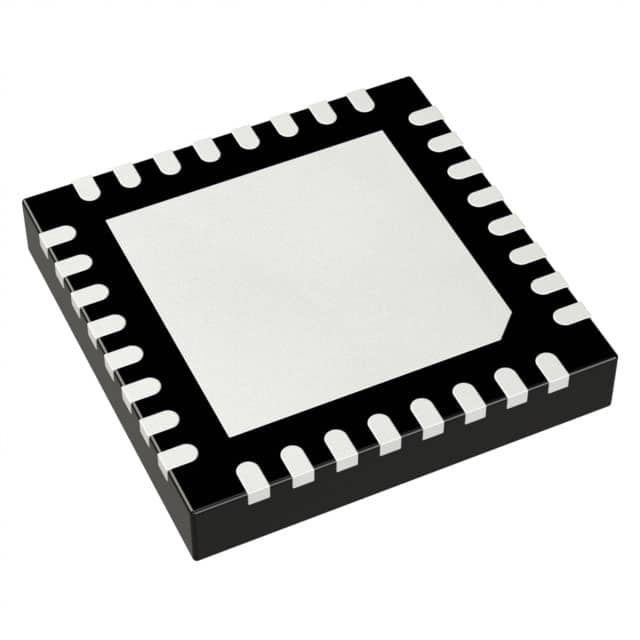

HMC987LP5E
IC CLK BUFFER 1:9 8GHZ 32QFNManufacturer: Analog Devices Inc.
Categories: Clock Buffers, Drivers
Quality Control: Learn More
Analog Devices Inc. HMC987LP5E is a high-performance clock fanout buffer designed for demanding signal distribution applications. This 1:9 buffer supports frequencies up to 8 GHz, making it suitable for advanced wireless infrastructure, high-speed test and measurement equipment, and data communications systems. The HMC987LP5E accepts differential inputs including CML, CMOS, LVDS, and LVPECL, and provides complementary outputs in CML and LVPECL formats. Its 32-VFQFN exposed pad package ensures efficient thermal management for surface mount applications. Operating over a temperature range of -40°C to 85°C, this device offers reliable performance across various environmental conditions. The 3V to 3.6V supply voltage range further enhances its versatility in modern electronic designs.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: StripDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Strip |
| Package / Case | 32-VFQFN Exposed Pad |
| Number of Circuits | 1 |
| Mounting Type | Surface Mount |
| Output | CML, LVPECL |
| Type | Fanout Buffer (Distribution) |
| Input | CML, CMOS, LVDS, LVPECL |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 3V ~ 3.6V |
| Ratio - Input:Output | 1:9 |
| Differential - Input:Output | Yes/Yes |
| Supplier Device Package | 32-QFN (5x5) |
| Frequency - Max | 8 GHz |
