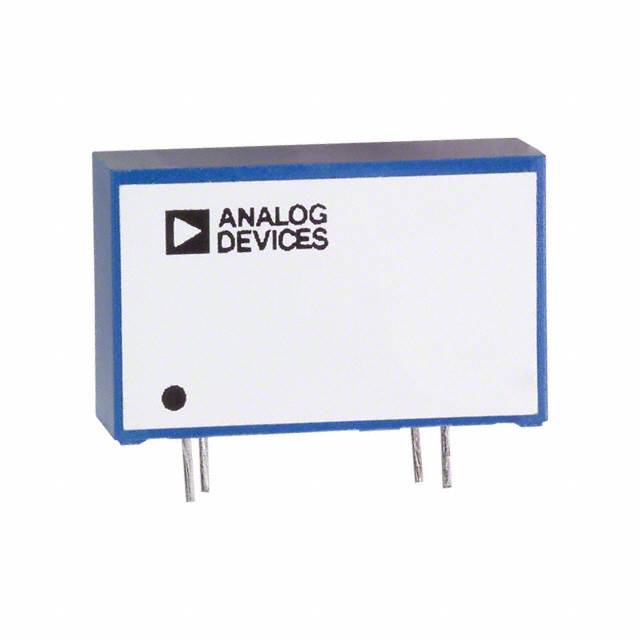

AD246JY
IC CLK BUFFER 1:1 25KHZ 4SIPManufacturer: Analog Devices Inc.
Categories: Clock Buffers, Drivers
Quality Control: Learn More
Analog Devices Inc. AD246JY is a 1:1 clock buffer/driver designed for applications requiring precise clock signal distribution. This component offers a maximum frequency of 25 kHz, making it suitable for low-frequency timing systems. The device features a single clock input and a single clock output, facilitating straightforward signal management. Packaged in a 4-SIP configuration with offset leads within a 13-SIP outline, the AD246JY is designed for through-hole mounting. Operating across a temperature range of -40°C to 85°C and requiring a supply voltage between 14.25V and 15.75V, this buffer/driver finds utility in industrial control systems and other applications demanding robust clock generation and distribution.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 13-SIP, 4 Leads, Offset Leads |
| Number of Circuits | 1 |
| Mounting Type | Through Hole |
| Output | Clock |
| Type | Buffer/Driver |
| Input | Clock |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 14.25V ~ 15.75V |
| Ratio - Input:Output | 1:1 |
| Differential - Input:Output | No/No |
| Supplier Device Package | 4-SIP |
| Frequency - Max | 25 kHz |
