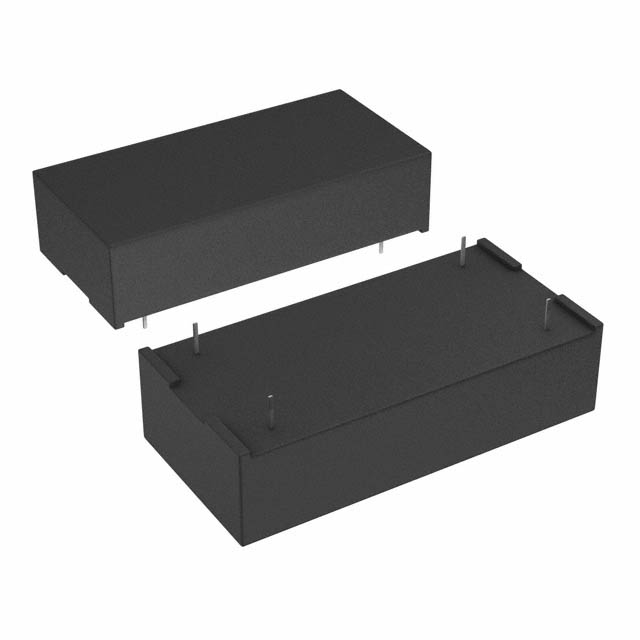

AD246JN
IC CLK BUFFER 1:1 25KHZ 24DIPManufacturer: Analog Devices Inc.
Categories: Clock Buffers, Drivers
Quality Control: Learn More
Analog Devices Inc. AD246JN is a single-circuit clock buffer/driver designed for precise signal distribution. This component operates with a 1:1 input-to-output ratio and supports a maximum frequency of 25 kHz. It features a clock input and a clock output, housed in a 24-DIP (0.500", 12.70mm) package with 4 leads, suitable for through-hole mounting. The AD246JN operates within a voltage supply range of 14.25V to 15.75V and functions across an industrial temperature range of -40°C to 85°C. This device finds application in various industrial control systems and instrumentation where stable clock signal integrity is critical.
Additional Information
Series: -RoHS Status: RoHS non-compliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 24-DIP (0.500"", 12.70mm), 4 Leads |
| Number of Circuits | 1 |
| Mounting Type | Through Hole |
| Output | Clock |
| Type | Buffer/Driver |
| Input | Clock |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply | 14.25V ~ 15.75V |
| Ratio - Input:Output | 1:1 |
| Differential - Input:Output | No/No |
| Supplier Device Package | 24-DIP |
| Frequency - Max | 25 kHz |
