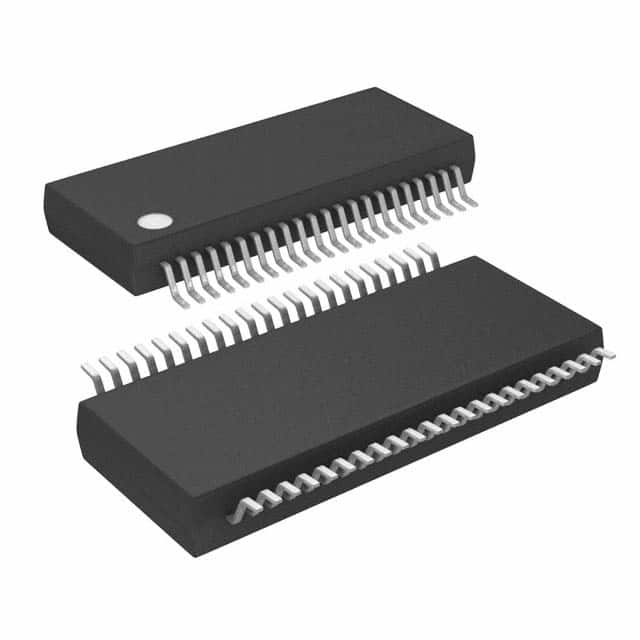

LTC6803IG-2#TRPBF
IC BATT MON MULTI 1-12C 44SSOPManufacturer: Analog Devices Inc.
Categories: Battery Management
Quality Control: Learn More
Analog Devices Inc. LTC6803IG-2-TRPBF is a multi-chemistry battery monitor IC designed for precise cell voltage acquisition. This component supports up to 12 series cells, offering versatile battery management solutions. Featuring over and under voltage fault protection, it ensures robust system integrity. The serial interface facilitates communication, while the 44-SSOP package with a 0.209" (5.30mm) width allows for efficient surface mounting. Operating within a -40°C to 85°C temperature range, the LTC6803IG-2-TRPBF is engineered for reliability in demanding applications across automotive, industrial, and energy storage sectors. The device is supplied in tape and reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 44-FSOP (0.209"", 5.30mm Width) |
| Number of Cells | 1 ~ 12 |
| Mounting Type | Surface Mount |
| Function | Battery Monitor |
| Interface | Serial |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Battery Chemistry | Multi-Chemistry |
| Supplier Device Package | 44-SSOP |
| Fault Protection | Over/Under Voltage |
