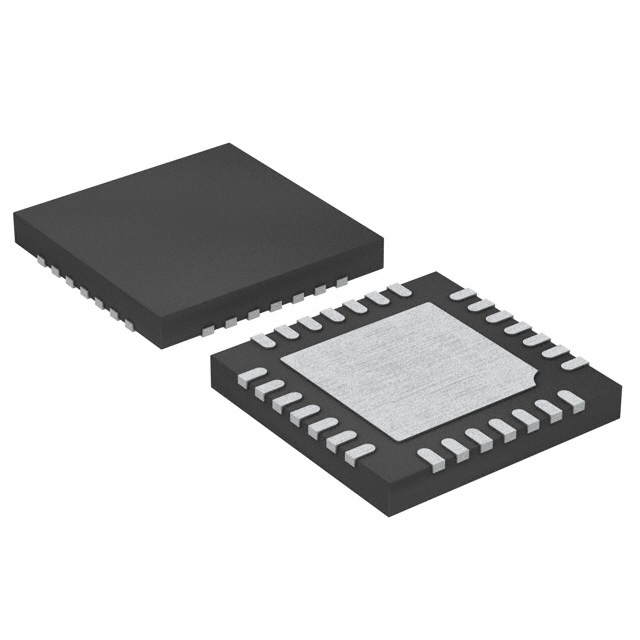

LTC4066EPF
IC BATT MFUNC LI-ION 1CL 24UTQFNManufacturer: Analog Devices Inc.
Categories: Battery Management
Quality Control: Learn More
Analog Devices Inc. LTC4066EPF is a single-cell Lithium Ion battery charger and multi-function controller designed for robust power management applications. This device integrates charge management, system power path control, and safety features within a compact 24-UTQFN (4x4) package. It offers USB charging with overcurrent fault protection, providing a reliable solution for portable electronics, industrial equipment, and automotive systems. The LTC4066EPF supports a wide operating temperature range of -40°C to 85°C, ensuring performance in demanding environments. Its surface mount capability and tube packaging facilitate efficient assembly processes for high-volume production.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TubeDownload Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 24-UFQFN Exposed Pad |
| Number of Cells | 1 |
| Mounting Type | Surface Mount |
| Function | Multi-Function Controller |
| Interface | USB |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Battery Chemistry | Lithium Ion |
| Supplier Device Package | 24-UTQFN (4x4) |
| Fault Protection | Over Current |
