ADBMS1818ASWAZ
18-CELL BATTERY MONITOR WITH DAIManufacturer: Analog Devices Inc.
Categories: Battery Management
Quality Control: Learn More

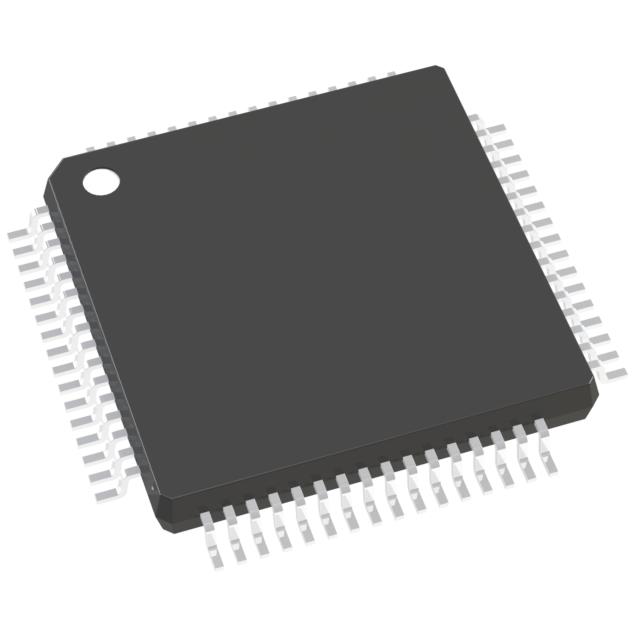

Analog Devices Inc. ADBMS1818ASWAZ is an 18-cell battery monitor IC designed for multi-chemistry battery systems. This component, housed in a 64-LQFP-EP (10x10) package, offers robust fault protection including over-temperature and over/under-voltage detection. It supports a wide operating temperature range of -40°C to 85°C (TJ) and is qualified to AEC-Q200 standards, making it suitable for automotive applications. The ADBMS1818ASWAZ features an SPI interface for communication and provides comprehensive battery monitoring functions. Its surface mount design facilitates efficient integration into compact board layouts. This device is commonly utilized in advanced battery management systems across electric vehicles, industrial power storage, and renewable energy sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 64-LQFP Exposed Pad |
| Number of Cells | 18 |
| Mounting Type | Surface Mount |
| Function | Battery Monitor |
| Interface | SPI |
| Operating Temperature | -40°C ~ 85°C (TJ) |
| Battery Chemistry | Multi-Chemistry |
| Supplier Device Package | 64-LQFP-EP (10x10) |
| Fault Protection | Over Temperature, Over/Under Voltage |
| Grade | Automotive |
| Qualification | AEC-Q200 |
