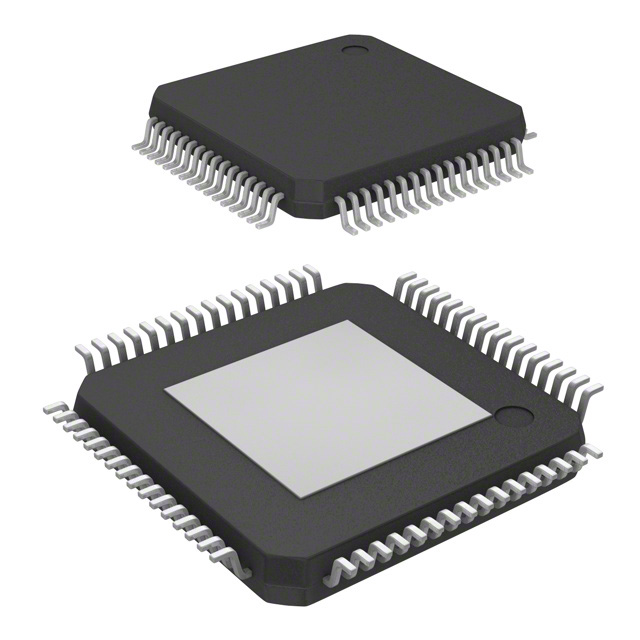

AD7284WBSWZ
IC BATT MON LI-ION 8CELL 64LQFPManufacturer: Analog Devices Inc.
Categories: Battery Management
Quality Control: Learn More
The Analog Devices Inc. AD7284WBSWZ is a comprehensive battery monitoring IC for Lithium-Ion battery packs. This electronic component is designed for multi-cell applications, supporting up to 8 cells in series. It features precise voltage, current, and temperature monitoring capabilities, along with overvoltage and undervoltage fault protection. Communication with the host system is facilitated via a serial peripheral interface (SPI). The AD7284WBSWZ is housed in a 64-lead LQFP exposed pad package (64-LQFP-EP (10x10)) for efficient surface mounting. Its wide operating temperature range of -40°C to 150°C (TJ) makes it suitable for demanding environments. This component finds application in electric vehicles, power tools, and energy storage systems where accurate and robust battery management is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | 64-LQFP Exposed Pad |
| Number of Cells | 8 |
| Mounting Type | Surface Mount |
| Function | Battery Monitor |
| Interface | SPI |
| Operating Temperature | -40°C ~ 150°C (TJ) |
| Battery Chemistry | Lithium Ion |
| Supplier Device Package | 64-LQFP-EP (10x10) |
| Fault Protection | Over/Under Voltage |
