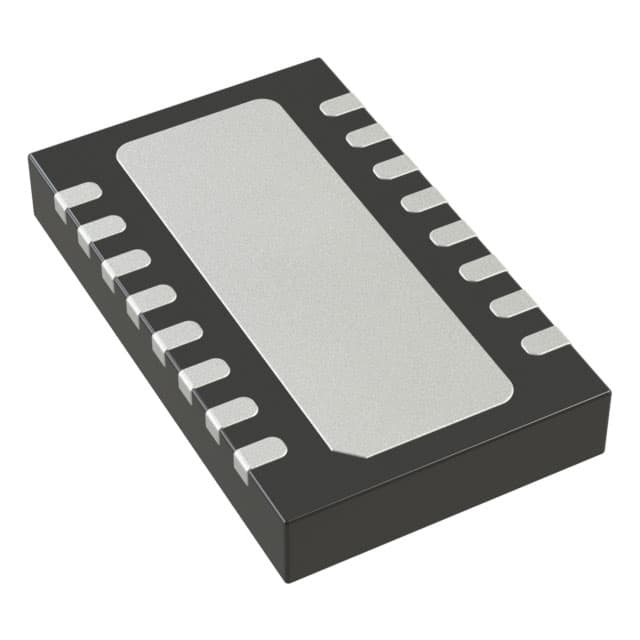

LTC4060EDHC#PBF
IC BAT CHG MULT-CHEM 1-4CL 16DFNManufacturer: Analog Devices Inc.
Categories: Battery Chargers
Quality Control: Learn More
Analog Devices Inc. LTC4060EDHC-PBF is a multi-chemistry battery charger IC designed for 1 to 4 cell battery packs. This device supports a maximum charge current of 2.1A with constant current, programmable charging control. It features over-temperature and over-voltage fault protection for robust operation. The LTC4060EDHC-PBF is housed in a compact 16-WFDFN exposed pad package, suitable for surface mounting. Its programmable timer function enhances charging control. Operating across a temperature range of -40°C to 85°C, this component is ideal for applications in electric vehicles, portable power tools, and industrial equipment requiring efficient and reliable battery management. The supply voltage maximum is 10V, and it supports a 1.5V battery pack voltage.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 16-WFDFN Exposed Pad |
| Number of Cells | 1 ~ 4 |
| Mounting Type | Surface Mount |
| Interface | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Battery Chemistry | Multi-Chemistry |
| Supplier Device Package | 16-DFN (5x3) |
| Charge Current - Max | 2.1A |
| Programmable Features | Timer |
| Fault Protection | Over Temperature, Over Voltage |
| Voltage - Supply (Max) | 10V |
| Battery Pack Voltage | 1.5V |
| Current - Charging | Constant - Programmable |
