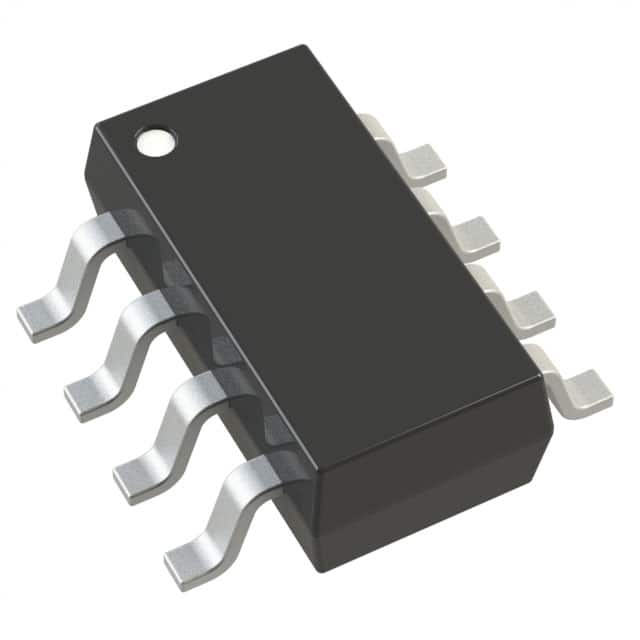

LTC4056ETS8-4.2#TRMPBF
IC BATT CHG LI-ION 1CEL TSOT23-8Manufacturer: Analog Devices Inc.
Categories: Battery Chargers
Quality Control: Learn More
Analog Devices Inc. presents the LTC4056ETS8-4-2-TRMPBF, a highly integrated lithium-ion battery charger for single-cell applications. This device is designed for efficient charging, offering a maximum charge current of 700mA with constant current and constant voltage control. It incorporates robust fault protection mechanisms, including over-current and over-temperature shutdown, ensuring safe and reliable operation. The charger supports a battery pack voltage of 4.2V and operates within a supply voltage range of up to 6.5V. Programmable features include a charge timer for controlled charging cycles. The LTC4056ETS8-4-2-TRMPBF is supplied in a compact TSOT-23-8 package, suitable for surface mount assembly. Its operating temperature range is -40°C to 85°C. This component is commonly utilized in portable electronics, medical devices, and industrial equipment requiring efficient and safe lithium-ion battery management.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | SOT-23-8 Thin, TSOT-23-8 |
| Number of Cells | 1 |
| Mounting Type | Surface Mount |
| Interface | - |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Battery Chemistry | Lithium Ion |
| Supplier Device Package | TSOT-23-8 |
| Charge Current - Max | 700mA |
| Programmable Features | Timer |
| Fault Protection | Over Current, Over Temperature |
| Voltage - Supply (Max) | 6.5V |
| Battery Pack Voltage | 4.2V |
| Current - Charging | Constant - Programmable |
