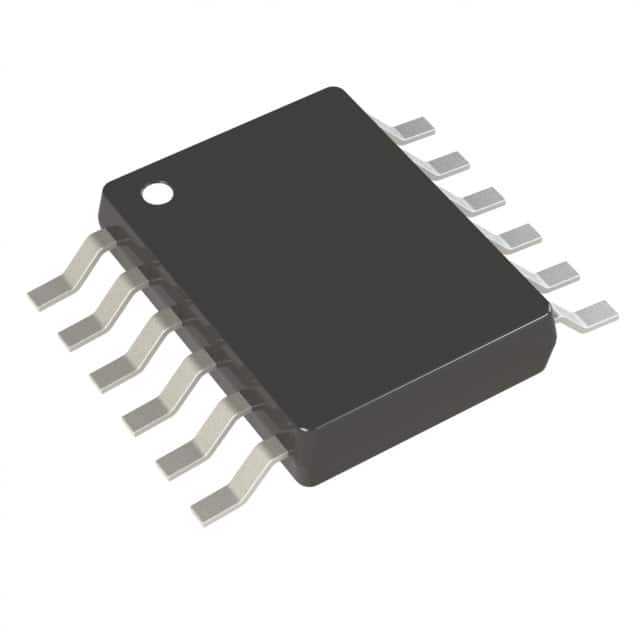

LT3652HVIMSE#PBF
IC BAT CHG MULTCHEM 4-5CL 12MSOPManufacturer: Analog Devices Inc.
Categories: Battery Chargers
Quality Control: Learn More
The Analog Devices Inc. LT3652HVIMSE-PBF is a high-voltage, multi-chemistry battery charger IC designed for 4 to 5 cell battery packs. This component supports a maximum battery pack voltage of 18V and offers a maximum charge current of 2A, with constant current and programmable charge current capabilities. It features programmable current and timer functions for flexible charging profiles. Operating across a wide temperature range of -40°C to 125°C (TJ), the LT3652HVIMSE-PBF is housed in a 12-MSOP-EP (Exposed Pad) package suitable for surface mounting. The supply voltage range extends up to 34V. This device is utilized in various applications including industrial equipment, automotive systems, and portable power solutions.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tube |
| Package / Case | 12-TSSOP (0.118"", 3.00mm Width) Exposed Pad |
| Number of Cells | 4 ~ 5 |
| Mounting Type | Surface Mount |
| Interface | - |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Battery Chemistry | Multi-Chemistry |
| Supplier Device Package | 12-MSOP-EP |
| Charge Current - Max | 2A |
| Programmable Features | Current, Timer |
| Fault Protection | - |
| Voltage - Supply (Max) | 34V |
| Battery Pack Voltage | 18V (Max) |
| Current - Charging | Constant - Programmable |
