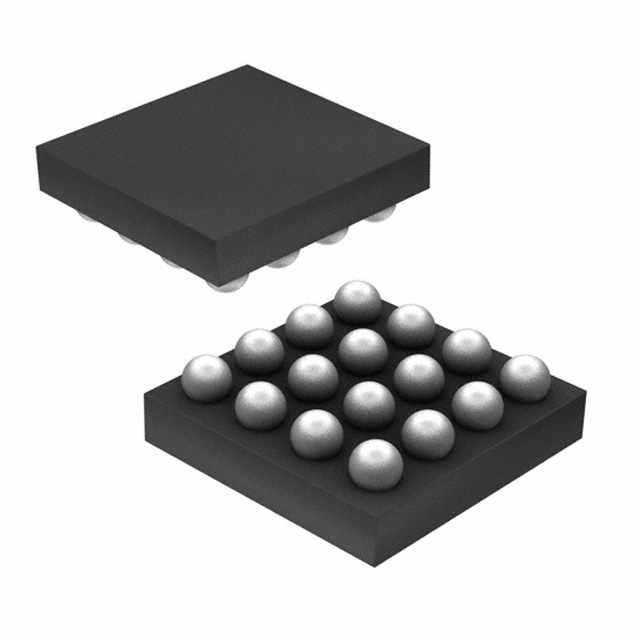

SSM2932ACBZ-R7
IC AMP CLASS G STER 85MW 16WLCSPManufacturer: Analog Devices Inc.
Categories: Audio Amplifiers
Quality Control: Learn More
The Analog Devices Inc. SSM2932ACBZ-R7 is a Class G stereo headphone amplifier IC. This component is housed in a compact 16-WLCSP (1.64x1.64mm) package, suitable for surface mounting. It features differential inputs, depop circuitry, short-circuit protection, and a shutdown mode for efficient power management. The SSM2932ACBZ-R7 delivers 85mW into a 16-ohm load for a single channel or 45mW into a 32-ohm load for two channels. Operating within a supply voltage range of 2.5V to 3.6V, this amplifier is designed for applications requiring high-fidelity audio, commonly found in portable electronics and consumer audio devices. The device operates across an ambient temperature range of -40°C to 85°C.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Depop, Differential Inputs, Short-Circuit Protection, Shutdown |
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-UFBGA, WLCSP |
| Output Type | Headphones, 2-Channel (Stereo) |
| Mounting Type | Surface Mount |
| Type | Class G |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 2.5V ~ 3.6V |
| Max Output Power x Channels @ Load | 85mW x 1 @ 16Ohm, 45mW x 2 @ 32Ohm |
| Supplier Device Package | 16-WLCSP (1.64x1.64) |
