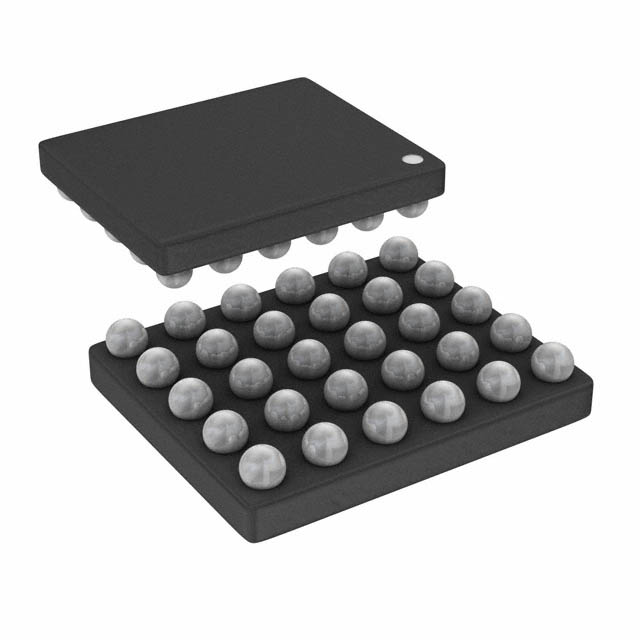

SSM2804CBZ-RL
IC AMP CLASS D STER 3.6W 30WLCSPManufacturer: Analog Devices Inc.
Categories: Audio Amplifiers
Quality Control: Learn More
Analog Devices Inc. SSM2804CBZ-RL is a 2-channel, Class D audio amplifier IC. This device delivers 3.6W per channel into a 4-ohm load, and 40mW per channel into a 16-ohm load, suitable for stereo headphone applications. It features I2C control, depop circuitry, shutdown functionality, and integrated volume control. The amplifier also includes robust protection against short-circuit conditions and thermal overload. Packaged in a 30-WLCSP with dimensions of 2.96x2.46, this surface-mount component is supplied on tape and reel. The operating temperature range is -40°C to 85°C, with a supply voltage range of 2.5V to 3.6V. This component finds application in portable electronics and consumer audio systems.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Depop, I2C, Short-Circuit and Thermal Protection, Shutdown, Volume Control |
| Packaging | Tape & Reel (TR) |
| Package / Case | 30-WFBGA, WLCSP |
| Output Type | 2-Channel (Stereo) with Stereo Headphones |
| Mounting Type | Surface Mount |
| Type | Class D |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 2.5V ~ 3.6V |
| Max Output Power x Channels @ Load | 3.6W x 2 @ 4Ohm; 40mW x 2 @ 16Ohm |
| Supplier Device Package | 30-WLCSP (2.96x2.46) |
