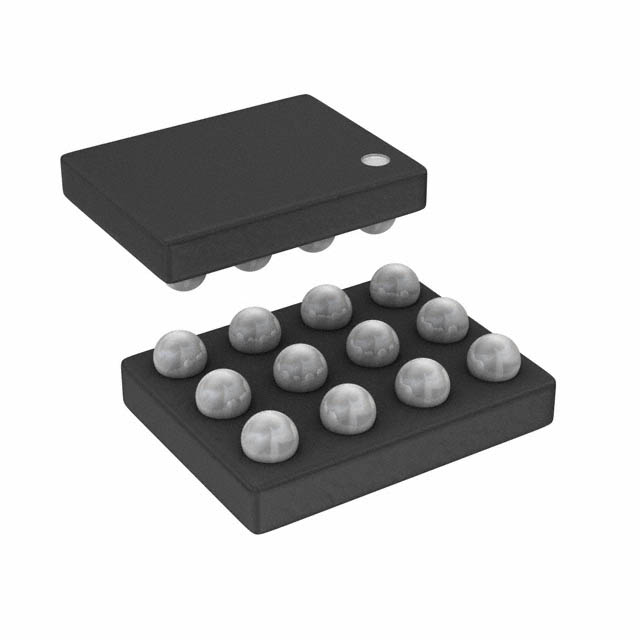

SSM2519ACBZ-RL
IC AMP CLSS D MONO 2.75W 12WLCSPManufacturer: Analog Devices Inc.
Categories: Audio Amplifiers
Quality Control: Learn More
Analog Devices Inc. SSM2519ACBZ-RL is a Class D audio amplifier IC. This single-channel, mono amplifier delivers 2.75W at a 4 Ohm load. The device features advanced digital control via I2C and I2S interfaces, facilitating precise volume control and system integration. Built-in protection mechanisms include shutdown, depop circuitry, and robust short-circuit and thermal protection, ensuring reliable operation. The compact 12-WLCSP package, measuring 1.42x1.67 mm, is ideal for space-constrained applications. Operating across a temperature range of -40°C to 85°C, this component is suitable for use in consumer electronics and audio systems. The SSM2519ACBZ-RL is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Depop, I2C, I2S, Short-Circuit and Thermal Protection, Shutdown, Volume Control |
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-UFBGA, WLCSP |
| Output Type | 1-Channel (Mono) |
| Mounting Type | Surface Mount |
| Type | Class D |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 1.5V ~ 3.6V |
| Max Output Power x Channels @ Load | 2.75W x 1 @ 4Ohm |
| Supplier Device Package | 12-WLCSP (1.42x1.67) |
