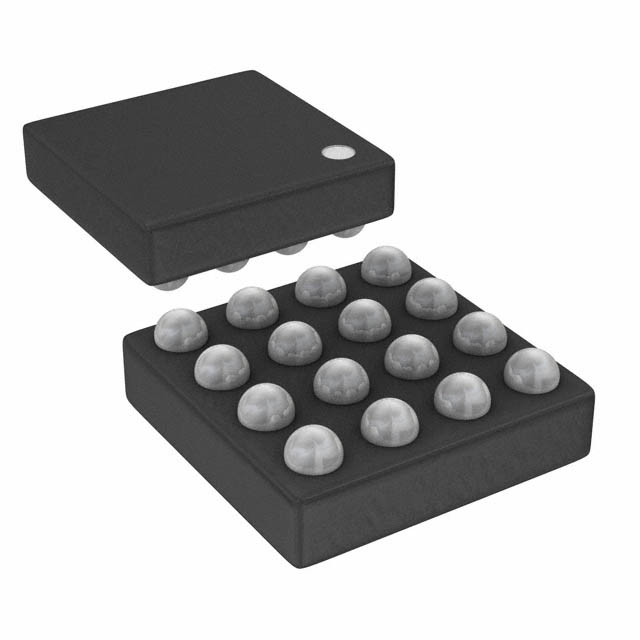

SSM2356CBZ-RL7
IC AMP CLASS D STER 2.5W 16WLCSPManufacturer: Analog Devices Inc.
Categories: Audio Amplifiers
Quality Control: Learn More
Analog Devices Inc. SSM2356CBZ-RL7 is a highly efficient, 2-channel Class D audio amplifier IC. This component delivers 2.5W per channel into a 4-ohm load, suitable for demanding audio applications. Featuring differential inputs, integrated depop circuitry, and robust protection against short-circuits and thermal overload, the SSM2356CBZ-RL7 ensures reliable performance. Its compact 16-WLCSP (1.66x1.66) package and surface mount design facilitate integration into space-constrained systems. Operating across a 2.5V to 5.5V supply range and an ambient temperature range of -40°C to 85°C, this amplifier is ideal for portable electronics, consumer audio systems, and automotive audio solutions. The component is supplied on tape and reel for automated assembly processes.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | Depop, Differential Inputs, Short-Circuit and Thermal Protection, Shutdown |
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-UFBGA, WLCSP |
| Output Type | 2-Channel (Stereo) |
| Mounting Type | Surface Mount |
| Type | Class D |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Supply | 2.5V ~ 5.5V |
| Max Output Power x Channels @ Load | 2.5W x 2 @ 4Ohm |
| Supplier Device Package | 16-WLCSP (1.66x1.66) |
