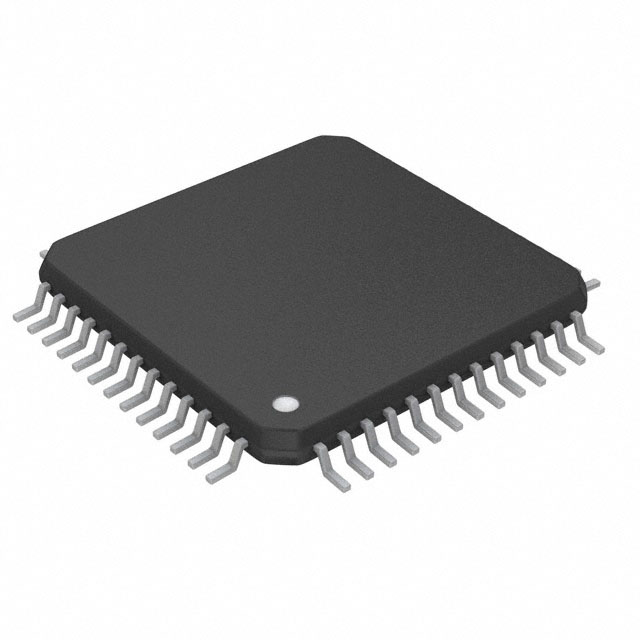

AD1991ASVZ
IC AMP AUDIO PWR 40W STER 52TQFPManufacturer: Analog Devices Inc.
Categories: Audio Amplifiers
Quality Control: Learn More
Analog Devices Inc. AD1991ASVZ is a high-performance Class D audio amplifier IC. This stereo or quad-channel amplifier is housed in a 52-TQFP-EP (10x10) package, designed for surface mount applications. It delivers up to 40W into a 4-ohm load for a single channel or 20W into an 8-ohm load for two channels. The device features integrated depop, mute, short-circuit, and thermal protection for robust operation. With a supply voltage range of 6.5V to 22.5V, the AD1991ASVZ is suitable for demanding audio applications across various industries, including automotive and consumer electronics.
Additional Information
Series: -RoHS Status: unknownManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Features | Depop, Mute, Short-Circuit and Thermal Protection |
| Packaging | Tray |
| Package / Case | 52-TQFP Exposed Pad |
| Output Type | 2-Channel (Stereo) or 4-Channel (Quad) |
| Mounting Type | Surface Mount |
| Type | Class D |
| Voltage - Supply | 6.5V ~ 22.5V |
| Max Output Power x Channels @ Load | 40W x 1 @ 4Ohm; 20W x 2 @ 8Ohm |
| Supplier Device Package | 52-TQFP-EP (10x10) |
