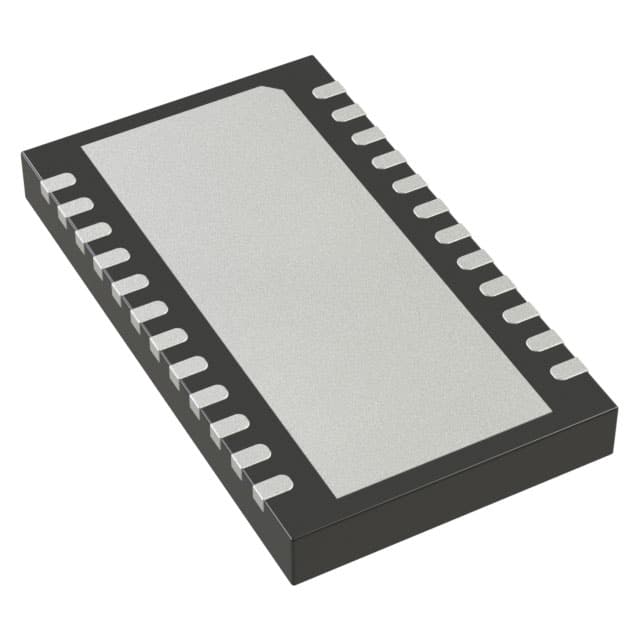

LTC2512CDKD-24#TRPBF
IC ADC 24BIT SAR 24DFNManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. LTC2512CDKD-24-TRPBF is a 24-bit, 1.6Msps successive approximation register (SAR) analog-to-digital converter (ADC). This component features a single-ended input and a 1:1 S/H to ADC ratio, optimized for high-precision signal acquisition. The LTC2512CDKD-24-TRPBF utilizes an SPI data interface for efficient communication and operates with analog and digital supply voltages ranging from 2.375V to 2.625V. Its compact 24-DFN (7x4) package with an exposed pad ensures effective thermal management for surface mount applications. This ADC is suitable for demanding applications in industries such as medical imaging, test and measurement, and high-fidelity audio processing where superior resolution and accurate conversion are critical. The component is supplied on tape and reel for automated assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 24-WFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 24 |
| Configuration | S/H-ADC |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 2.375V ~ 2.625V |
| Voltage - Supply, Digital | 2.375V ~ 2.625V |
| Sampling Rate (Per Second) | 1.6M |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 24-DFN (7x4) |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
