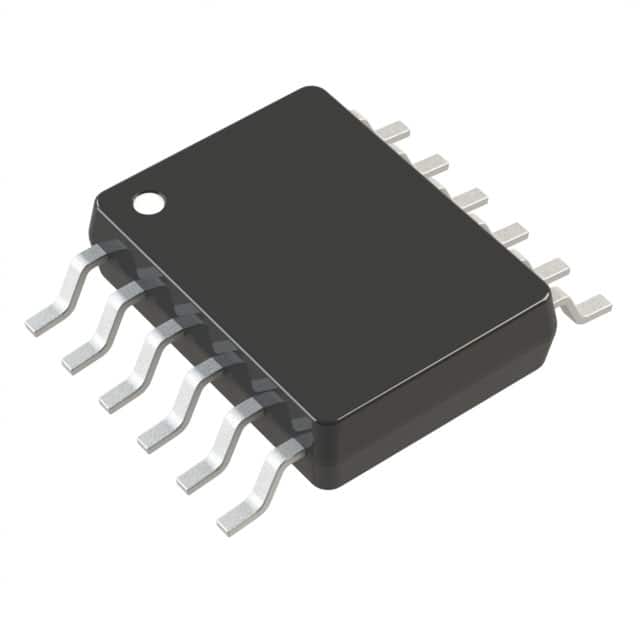

LTC2470IMS#TRPBF
IC ADC 16BIT SIGMA-DELTA 12MSOPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc. LTC2470IMS-TRPBF is a 16-bit, single-input, sigma-delta analog-to-digital converter. This component features an SPI data interface and an internal reference. It offers a sampling rate of 833 kSPS with a low power consumption profile. The device operates from a 2.7V to 5.5V analog and digital supply. Packaged in a 12-MSOP (12-TSSOP) for surface mounting, it is supplied on tape and reel. This converter is suitable for applications requiring precise measurement in industrial, medical, and instrumentation systems. The operating temperature range is -40°C to 85°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 12-TSSOP (0.118"", 3.00mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Configuration | ADC |
| Data Interface | SPI |
| Reference Type | Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Sampling Rate (Per Second) | 833 |
| Input Type | Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 12-MSOP |
| Architecture | Sigma-Delta |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
