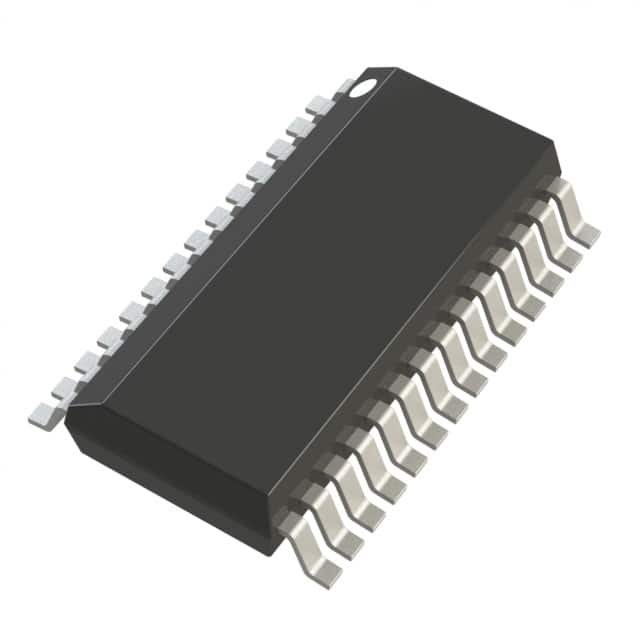

LTC2414CGN#TRPBF
IC ADC 24BIT SIGMA-DELTA 28SSOPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. microPOWER™ Series LTC2414CGN-TRPBF is a 24-bit, 4-channel (or 8-channel single-ended) delta-sigma analog-to-digital converter. This device features a single ADC core with a high-resolution 24-bit output. The LTC2414CGN-TRPBF operates with a sampling rate of 7.5 kSPS and supports both differential and single-ended input types. The analog and digital supply voltage range is 2.7V to 5.5V. Data is communicated via an SPI interface. Packaged in a 28-SSOP, this component is suitable for surface mount applications and operates within a temperature range of 0°C to 70°C. It is commonly utilized in applications requiring precise measurement, such as industrial control, instrumentation, and low-power sensor interfaces.
Additional Information
Series: microPOWER™RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 28-SSOP (0.154"", 3.90mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 24 |
| Configuration | MUX-ADC |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V |
| Sampling Rate (Per Second) | 7.5 |
| Input Type | Differential, Single Ended |
| Number of Inputs | 4, 8 |
| Supplier Device Package | 28-SSOP |
| Architecture | Sigma-Delta |
| Ratio - S/H:ADC | - |
| Number of A/D Converters | 1 |
