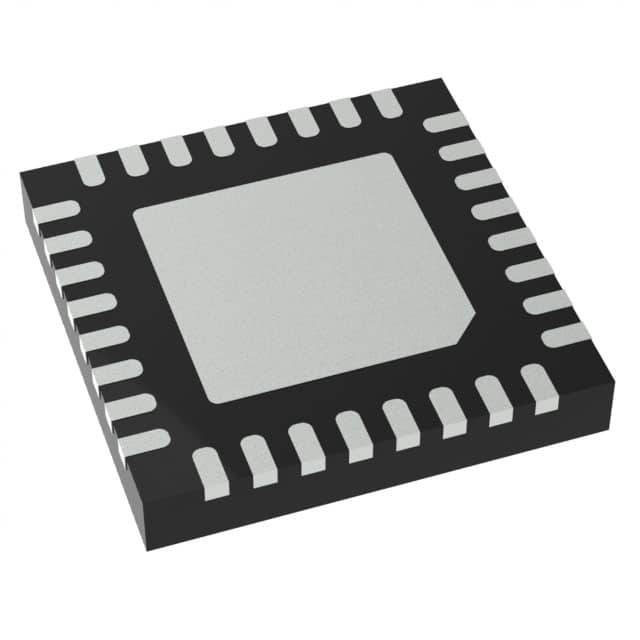

LTC2387CUH-18#PBF
IC ADC 18BIT SAR 32QFNManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc. LTC2387CUH-18-PBF is an 18-bit successive approximation (SAR) analog-to-digital converter (ADC). This single-channel device features a differential input and an internal reference, operating with a sampling rate of 15 MSPS. The architecture integrates Sample-and-Hold (S/H) functionality, offering a 1:1 S/H to ADC ratio. Data is transmitted serially via an LVDS interface. The component is housed in a 32-QFN (5x5) package with an exposed pad, designed for surface mounting. Analog supply voltage is 5V, with a digital supply range of 2.375V to 2.625V. The operating temperature range is from 0°C to 70°C. This ADC is suitable for applications in data acquisition systems, medical imaging, and high-speed test and measurement equipment.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: TubeDatasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tube |
| Package / Case | 32-WFQFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 18 |
| Configuration | S/H-ADC |
| Data Interface | LVDS - Serial |
| Reference Type | Internal |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 5V |
| Voltage - Supply, Digital | 2.375V ~ 2.625V |
| Sampling Rate (Per Second) | 15M |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 32-QFN (5x5) |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
