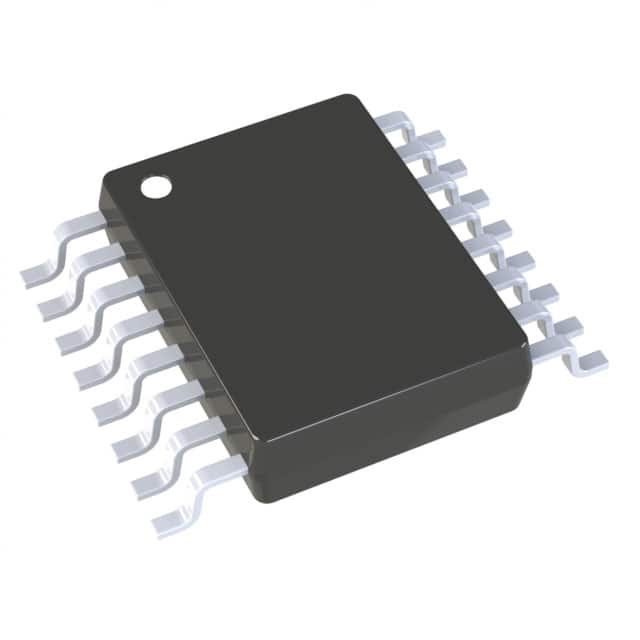

LTC2380CMS-24#TRPBF
IC ADC 24BIT SAR 16MSOPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc. LTC2380CMS-24-TRPBF is a 24-bit Analog-to-Digital Converter (ADC) featuring a Successive Approximation Register (SAR) architecture. This component offers a high resolution of 24 bits with a single input channel and a sampling rate of up to 2 MSPS. The device supports a differential input type and utilizes an SPI data interface for communication. It operates within an analog and digital supply voltage range of 1.71V to 5.25V and is housed in a compact 16-MSOP (16-TFSOP) package, suitable for surface mount applications. The LTC2380CMS-24-TRPBF is designed for use in demanding applications across various industries including industrial instrumentation, medical imaging, and data acquisition systems. The component is supplied on a tape and reel for automated assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 10 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-TFSOP (0.118"", 3.00mm Width) |
| Mounting Type | Surface Mount |
| Number of Bits | 24 |
| Configuration | S/H-ADC |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 1.71V ~ 5.25V |
| Voltage - Supply, Digital | 1.71V ~ 5.25V |
| Sampling Rate (Per Second) | 2M |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 16-MSOP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
