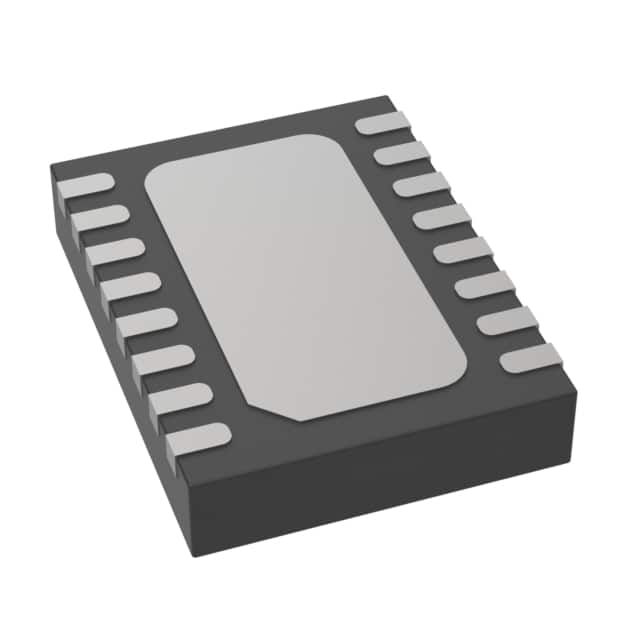

LTC2378CDE-16#TRPBF
IC ADC 16BIT SAR 16DFNManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
Analog Devices Inc. presents the LTC2378CDE-16-TRPBF, a 16-bit successive approximation register (SAR) analog-to-digital converter. This component features a single differential input and a sampling rate of 1 MSPS, with a 1:1 Sample-and-Hold to ADC ratio. The device operates within a power supply range of 2.375V to 2.625V for both analog and digital supplies. Data is communicated via an SPI interface. The LTC2378CDE-16-TRPBF is supplied in a compact 16-lead, 4x3mm exposed pad DFN package, suitable for surface mounting. Its architecture and precision make it an ideal choice for applications in industrial instrumentation, medical imaging, and high-speed data acquisition systems operating within a 0°C to 70°C temperature range.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 16-WFDFN Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 16 |
| Configuration | S/H-ADC |
| Data Interface | SPI |
| Reference Type | External |
| Operating Temperature | 0°C ~ 70°C |
| Voltage - Supply, Analog | 2.375V ~ 2.625V |
| Voltage - Supply, Digital | 2.375V ~ 2.625V |
| Sampling Rate (Per Second) | 1M |
| Input Type | Differential |
| Number of Inputs | 1 |
| Supplier Device Package | 16-DFN (4x3) |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
