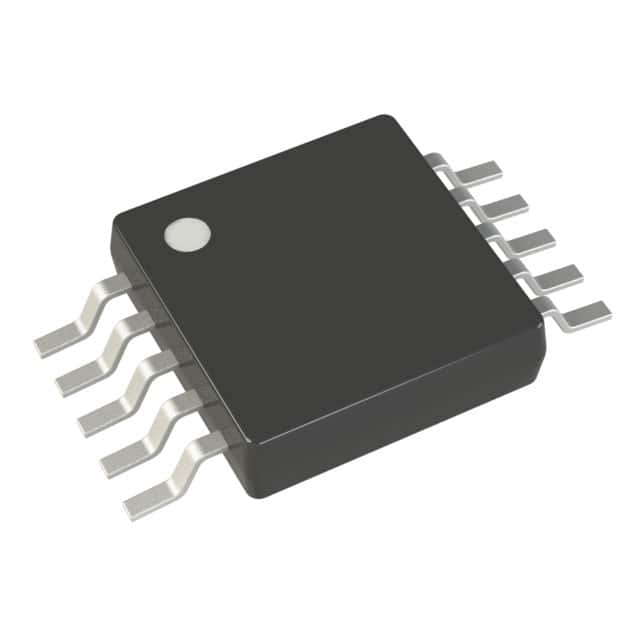

LTC2356IMSE-14#TRPBF
IC ADC 14BIT SAR 10MSOPManufacturer: Analog Devices Inc.
Categories: Analog to Digital Converters (ADC)
Quality Control: Learn More
The Analog Devices Inc. LTC2356IMSE-14-TRPBF is a 14-bit successive approximation register (SAR) analog-to-digital converter (ADC) offering a 3.5 MSPS sampling rate. This component features a single input and a 1:1 Sample-and-Hold to ADC ratio, supporting both differential and single-ended input types. The ADC utilizes an SPI data interface for communication. It operates within a supply voltage range of 3.1V to 3.6V for both analog and digital supplies and is specified for an operating temperature range of -40°C to 85°C. The LTC2356IMSE-14-TRPBF is housed in a 10-MSOP-EP package with an exposed pad, designed for surface mounting. This device is suitable for applications in industrial automation, medical instrumentation, and high-speed data acquisition systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: 13 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Features | - |
| Packaging | Tape & Reel (TR) |
| Package / Case | 10-TFSOP, 10-MSOP (0.118"", 3.00mm Width) Exposed Pad |
| Mounting Type | Surface Mount |
| Number of Bits | 14 |
| Configuration | S/H-ADC |
| Data Interface | SPI |
| Reference Type | External, Internal |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Supply, Analog | 3.1V ~ 3.6V |
| Voltage - Supply, Digital | 3.1V ~ 3.6V |
| Sampling Rate (Per Second) | 3.5M |
| Input Type | Differential, Single Ended |
| Number of Inputs | 1 |
| Supplier Device Package | 10-MSOP-EP |
| Architecture | SAR |
| Ratio - S/H:ADC | 1:1 |
| Number of A/D Converters | 1 |
